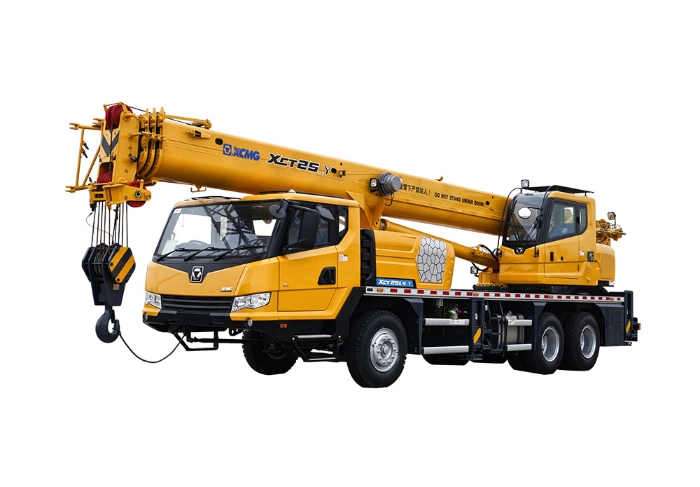

XCT25L4_Y
XCT25L4_Y is widely used in logistics warehousing, construction sites, and other fields
25
33.5
3
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 25 | t |
| Telescopic boom | 33.5 | m |
| Number of axles | 3 | - |
| Max. hoist height | 42.7 | m |
| Max.load moment | 931 | kN.m |
| Drive engine model | SC7H200G4A | - |
| Drive engine power | 149 | kw |
| Drive/Steering | 6×4×2 | - |
| Driving speed | 50 | km/h |
| Dead Weight in Travel State | 25000 26000 | kg |
| Dimensions | 12245×2550×3395 | mm |
| Emission standard | BS-IV | - |
