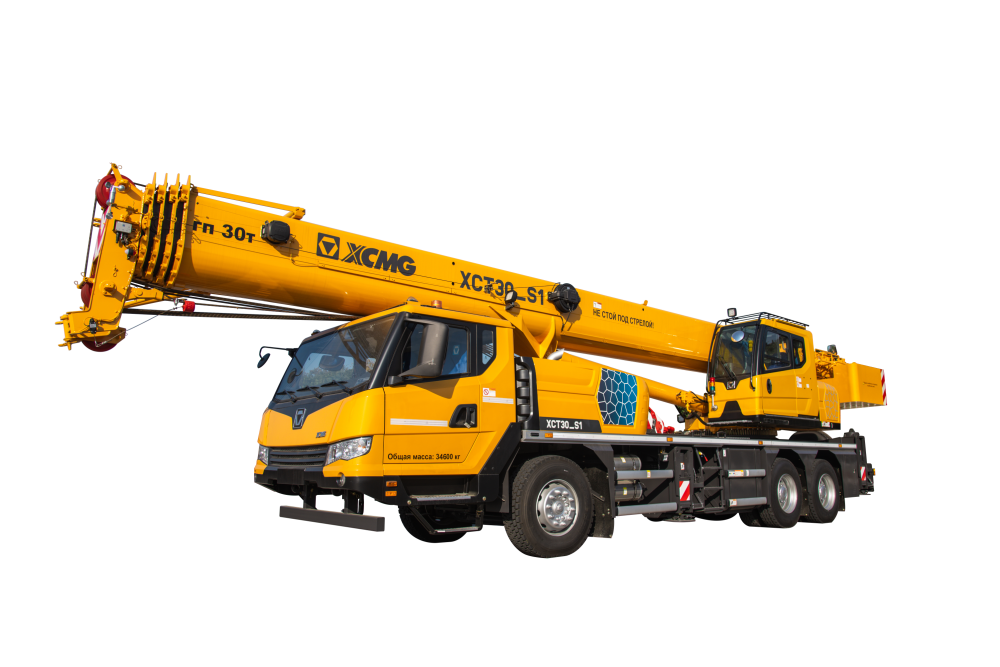

XCT30_S1
XCT30_S1 is widely used in construction fields such as urban infrastructure (including subways and light rail), building/factory construction, and equipment auxiliary lifting.
30
44
3
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 30 | t |
| Telescopic boom | 44 | m |
| Number of axles | 3 | - |
| Max. hoist height | 51.1 | m |
| Max.load moment | 1240 | kN.m |
| Drive engine model | SC9DF340Q5 | - |
| Drive engine power | 251 | kw |
| Drive/Steering | 6×4×2 | - |
| Driving speed | 90 | km/h |
| Dead Weight in Travel State | 34600 | kg |
| Dimensions | 13748×2550×3460 | mm |
| Emission standard | Euro V | - |
