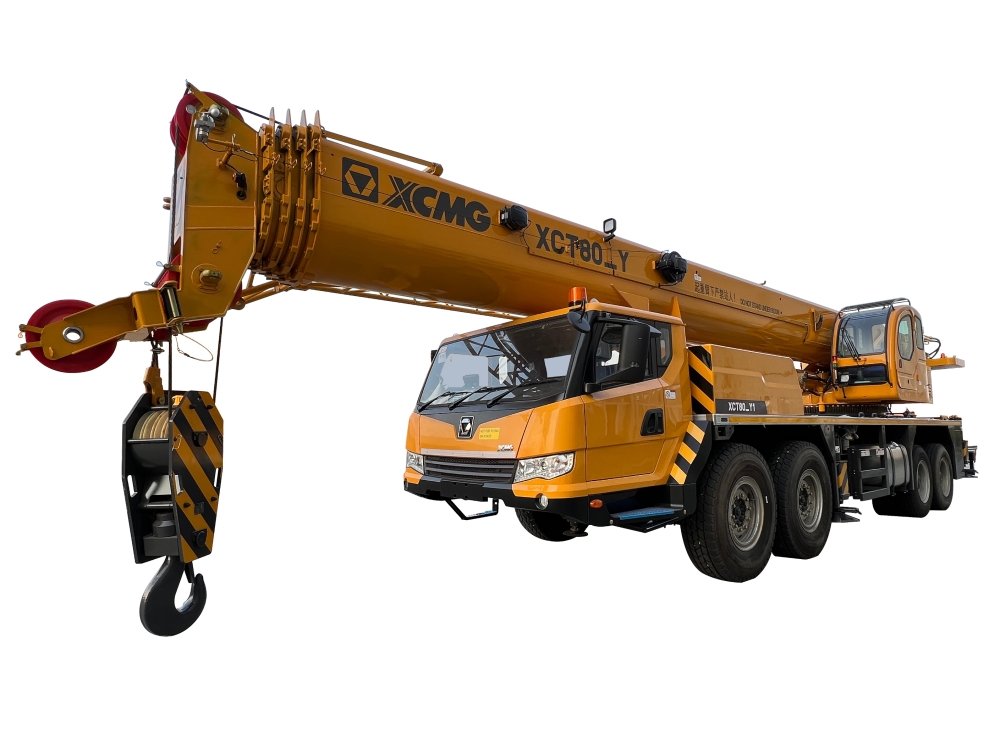

XCT80_Y1
XCT80_Y1 is widely used for the lifting operations in general engineering projects, such as construction sites, urban renewal, communication and transportation, ports, bridges, oilfields and mines, electricity, water conservancy facilities and complex working environments.
80
50.5
4
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 80 | t |
| Telescopic boom | 50.5 | m |
| Number of axles | 4 | - |
| Max. hoist height | 65 | m |
| Max.load moment | 2965 | kN.m |
| Drive engine model | WP10HG350E670 | - |
| Drive engine power | 257 | kw |
| Drive/Steering | 8×4×4 | - |
| Driving speed | 48 | km/h |
| Dead Weight in Travel State | 46900 | kg |
| Dimensions | 14985×2800×3790 | mm |
| Emission standard | BS-V | - |
