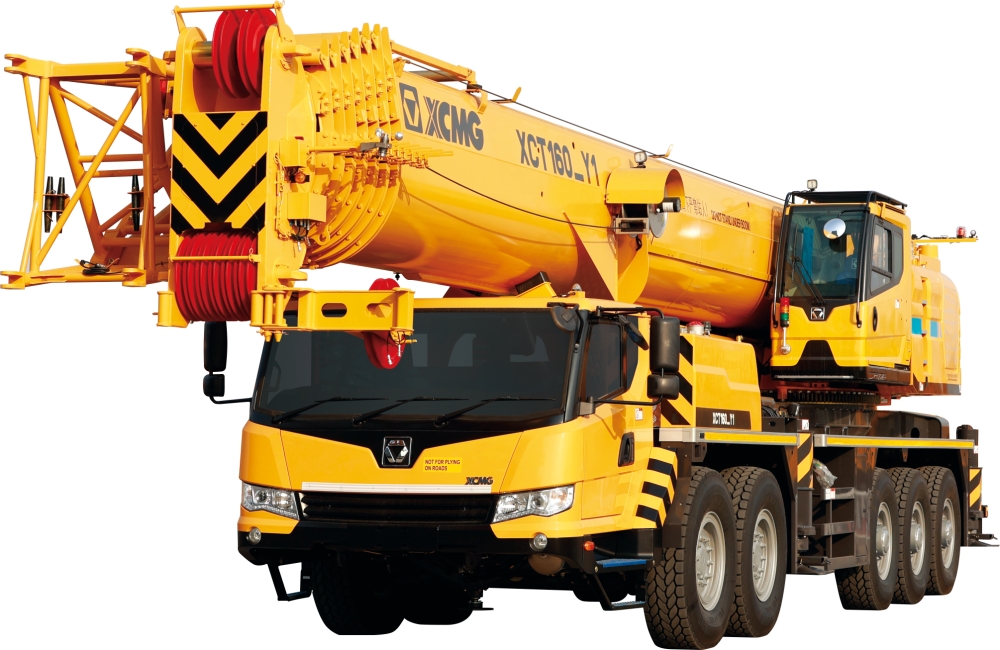

XCT160_Y1
XCT160_Y1 is a 5-axle, 160-tonne truck crane with a wide range of applicable operation modes and economical operation. It is widely used for the infrastructure constructions in high-speed railway project, urban overpass construction, assembly and disassembly of tower crane, etc., as well as the lifting and installation operations in the other complex working environments, such as oilfields and chemical industry.
160
88
5
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 160 | t |
| Telescopic boom | 88 | m |
| Number of axles | 5 | - |
| Max. hoist height | 116 | m |
| Max.load moment | 4939 | kN.m |
| Drive engine model | WP10HG400E670 | - |
| Drive engine power | 294 | kw |
| Drive/Steering | 10×6×8 | - |
| Driving speed | 48 | km/h |
| Dead Weight in Travel State | 54900 | kg |
| Dimensions | 16393×3000×3990 | mm |
| Emission standard | BSV | - |
