XCT35_SR

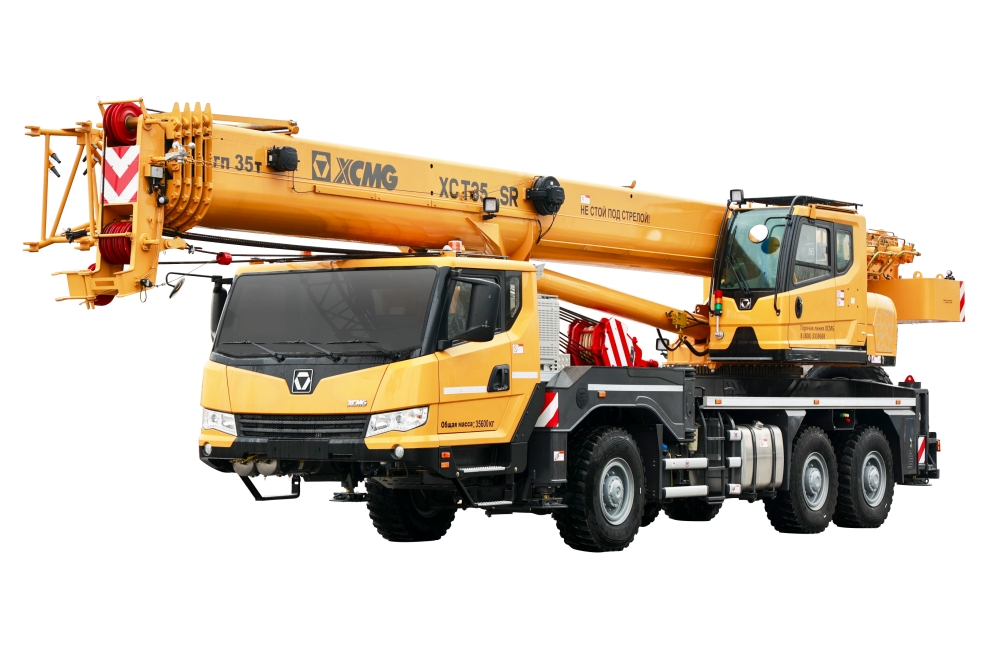

XCT35_SR is a 3-axle 35-ton truck crane with high adaptability to the job site and a wide range of acceptable operating conditions. It features a 44-meter, 5-section main boom, an 8.3-meter fixed boom, a fixed 5.5-ton counterweight, a V-shaped diesel engine paired with a 9-speed gearbox, 3-axle type K outriggers, and all-wheel drive.
35
44
3
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 35 | t |
| Telescopic boom | 44 | m |
| Number of axles | 3 | - |
| Max. hoist height | 51.2 | m |
| Max.load moment | 1240 | kN.m |
| Drive engine model | SC9DF340Q5 | - |
| Drive engine power | 25.1 | kw |
| Drive/Steering | 6×2 | - |
| Driving speed | 80 | km/h |
| Dead Weight in Travel State | 35600 | kg |
| Dimensions | 13480×2500×3650 | mm |
| Emission standard | Euro V | - |
