XCT25_Y1

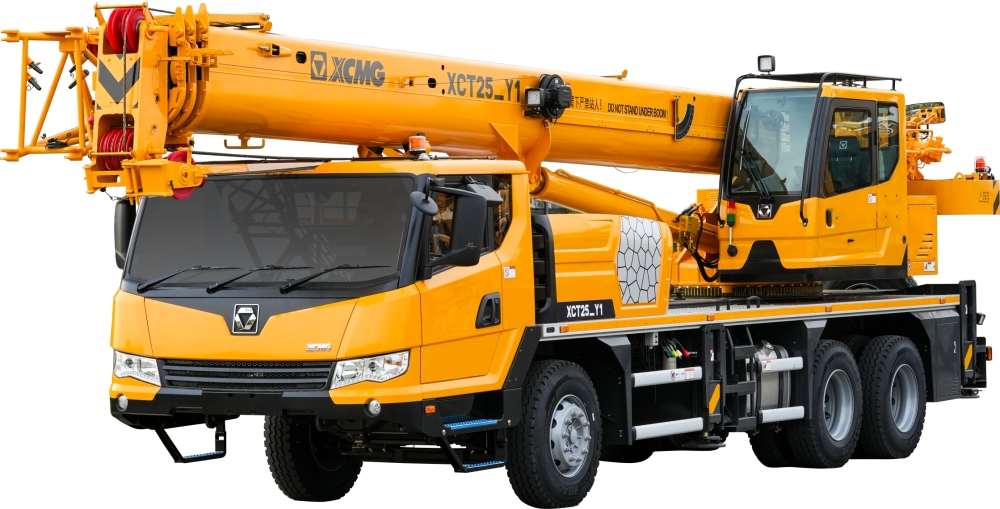

XCT25_Y1 is a 3-axle 25 t truck crane with the longer boom length and the stronger lifting performance. It has a 4-section 33.5 m boom and an 8.15 m fixed jib, with a lifting capacity of 6.1 t under fully extended boom and jib.
25
33.5
3
PARAMETERS
| Item | Parameter | Unit |
| Max. load capacity | 25 | t |
| Telescopic boom | 33.5 | m |
| Number of axles | 3 | - |
| Max. hoist height | 41.6 | m |
| Max.load moment | 941 | kN.m |
| Drive engine model | SC7H260Q3 | - |
| Drive engine power | 192 | kw |
| Drive/Steering | 4×2 | - |
| Driving speed | 85 | km/h |
| Dead Weight in Travel State | 24510 | kg |
| Dimensions | 12207×2500×3450 | mm |
| Emission standard | China lll | - |
