STC1600T7

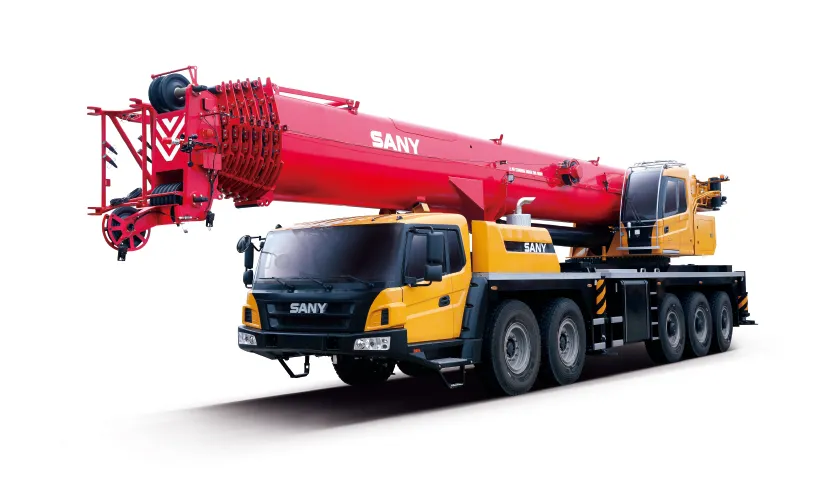

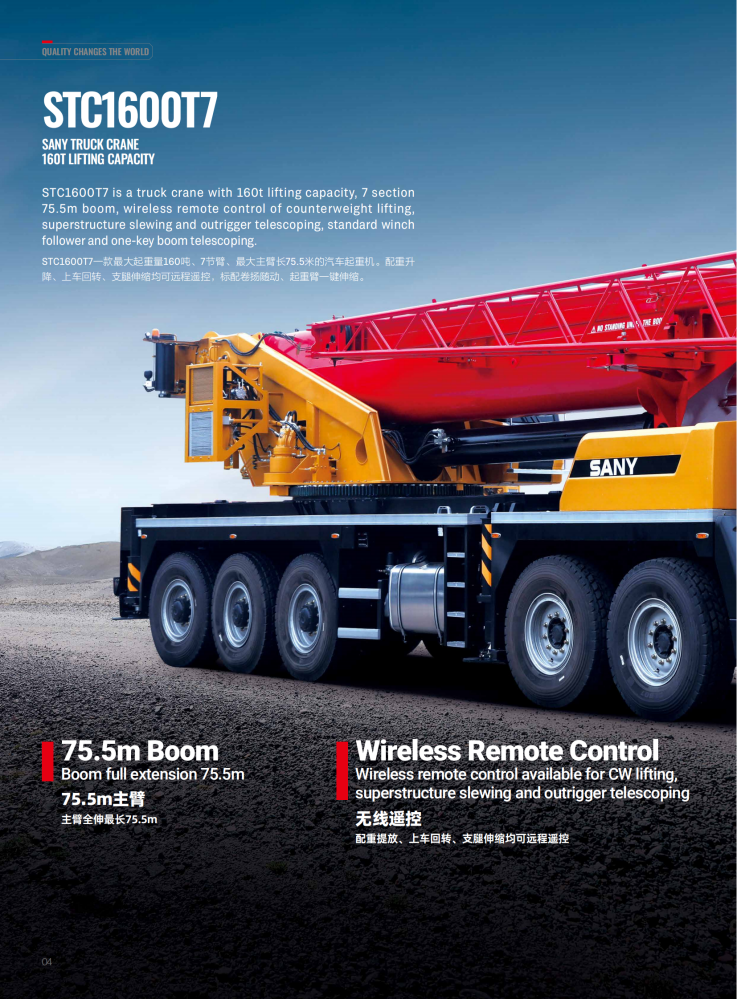

The STC1600T7 is a 160-ton heavy-duty truck crane. Its maximum lifting capacity reaches 160 tons. Its seven-section main boom reaches 75.5 meters when fully extended. With a jib up to 17.5 meters long, it achieves a maximum lifting height of 102.5 meters, enabling a wide operating range. Power comes from a powerful 316kW engine and a stable and reliable transmission, ensuring excellent driving performance and strong gradeability.
160 T
75.5 m

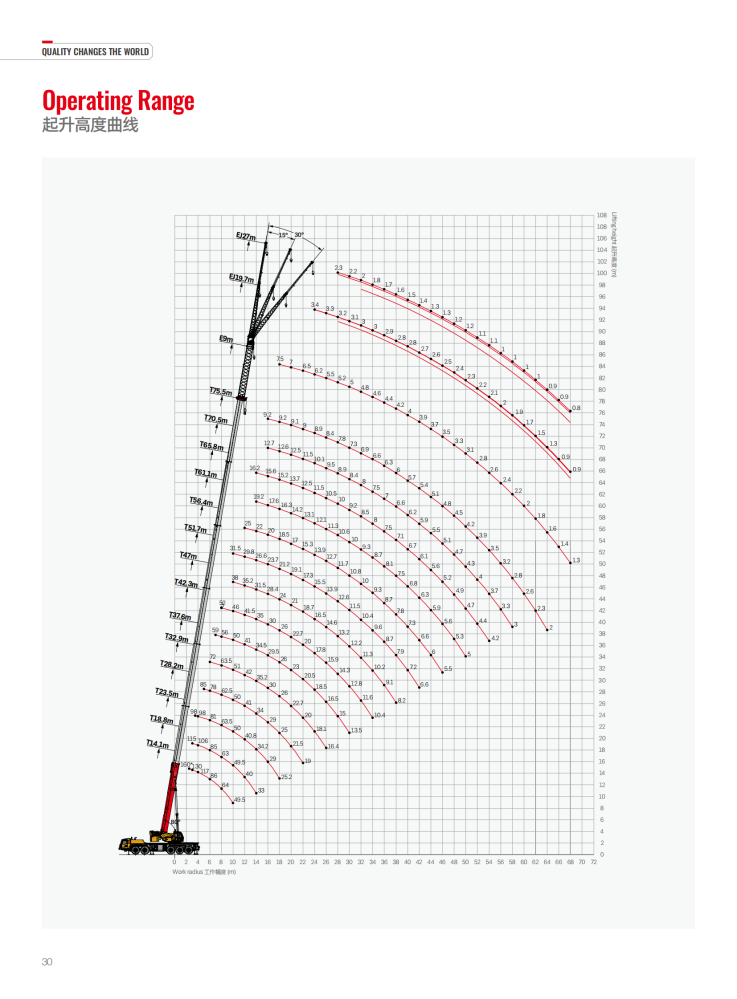

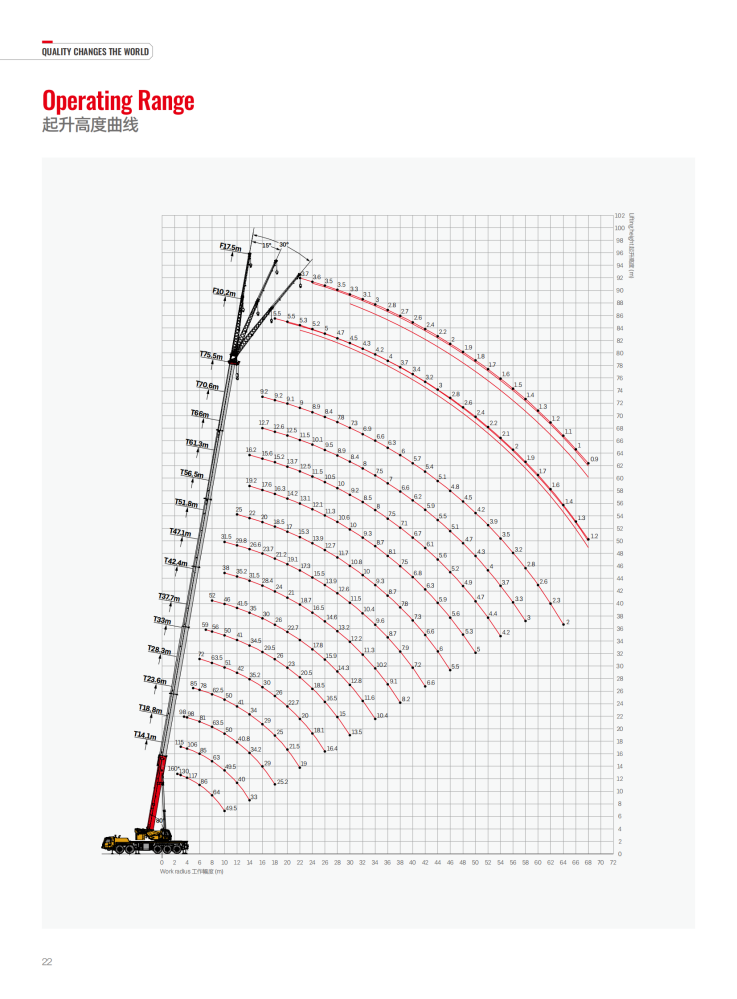

102.5 m

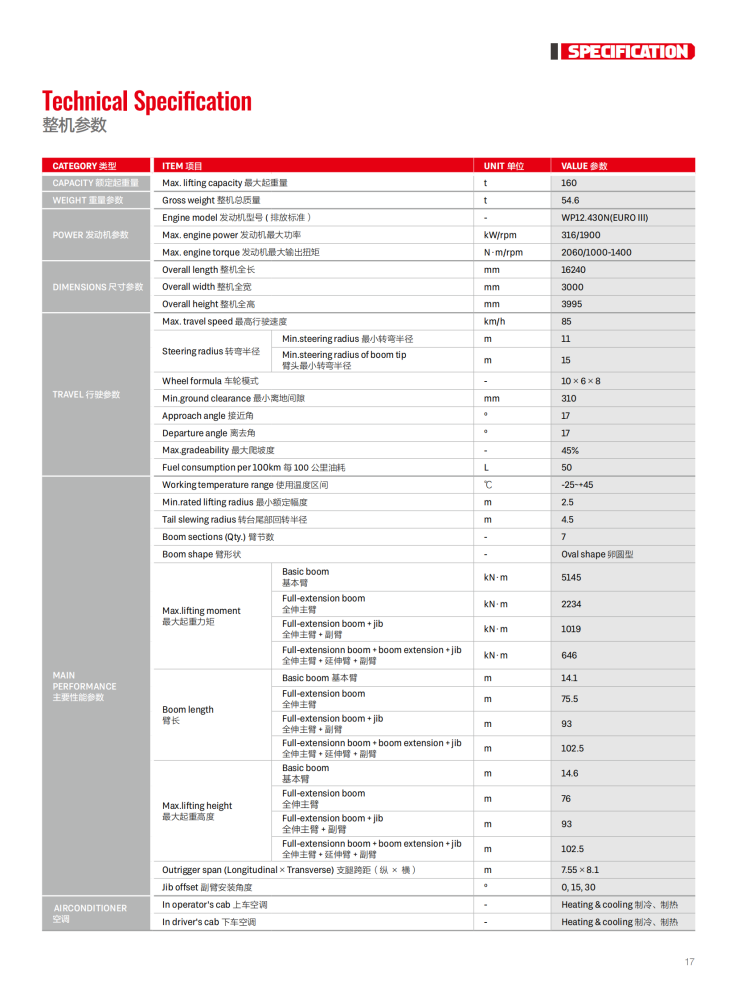

| Max. Lifting Capacity | 160T |
| Max. Lifting Height | 102.5m |
| Max. Lifting Moment | 5145kN.m |

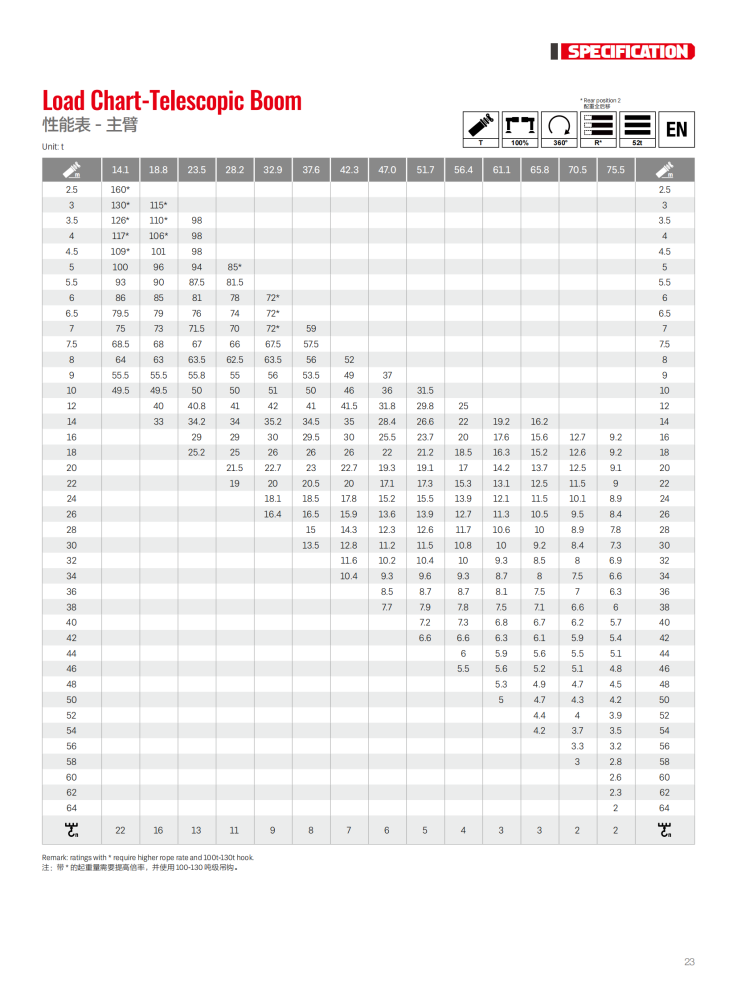

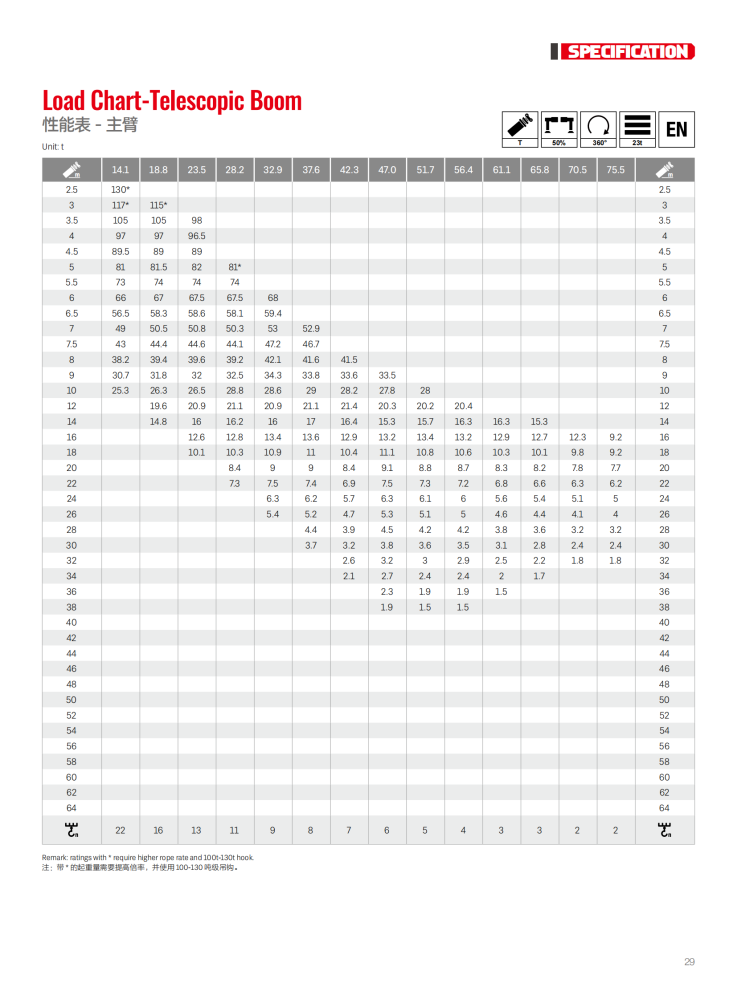

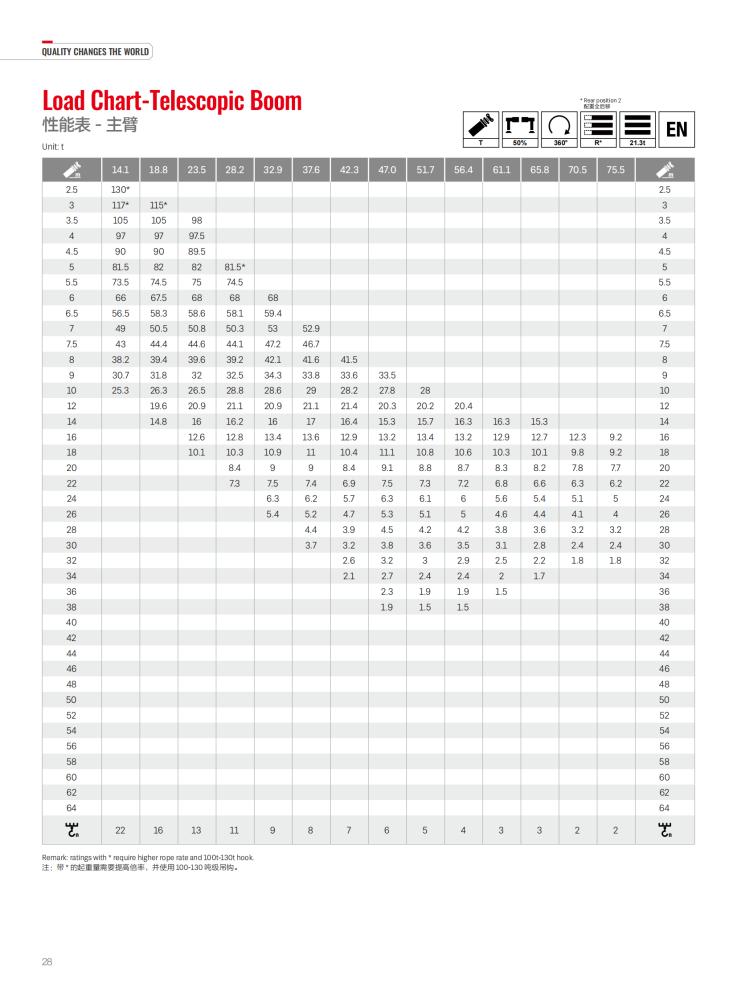

| Max. Boom Length | 75.5m |

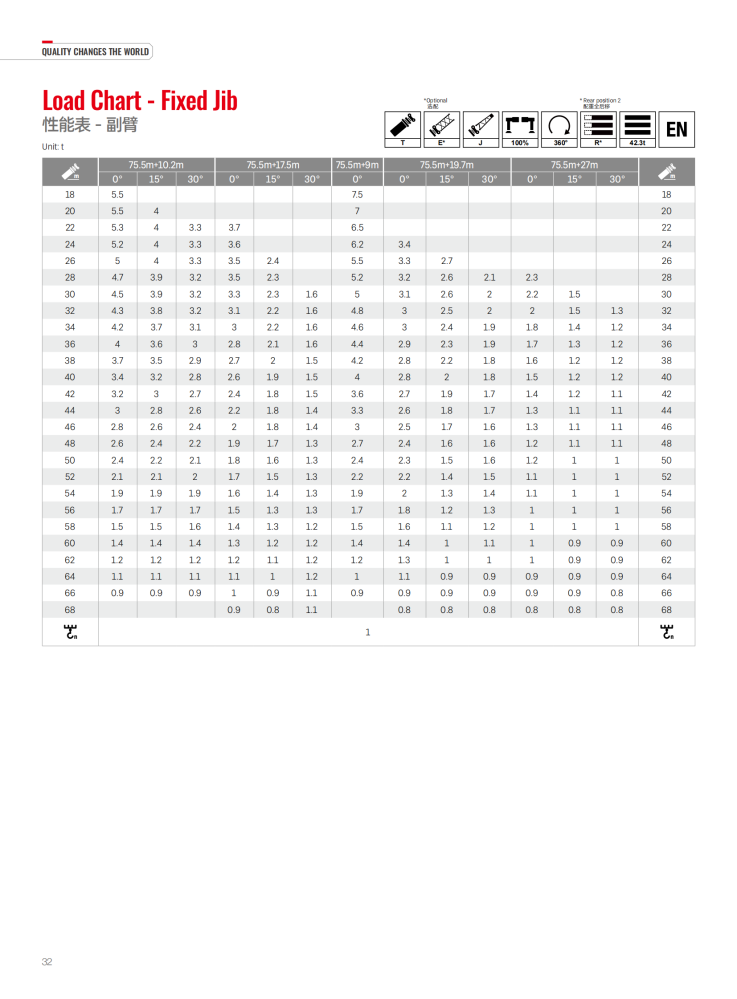

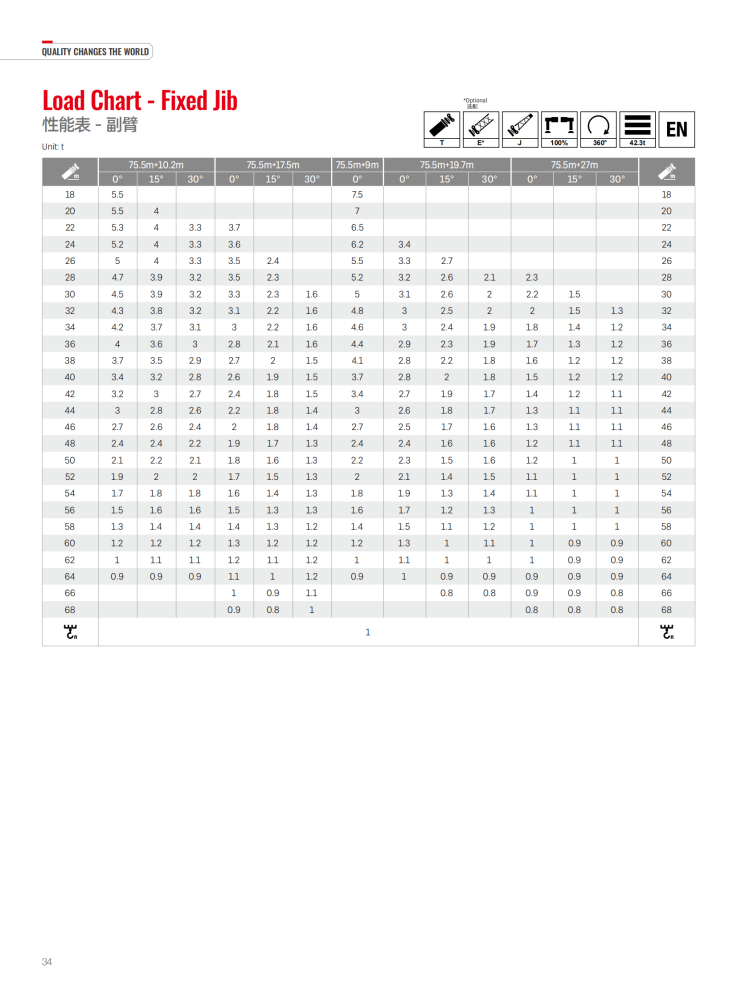

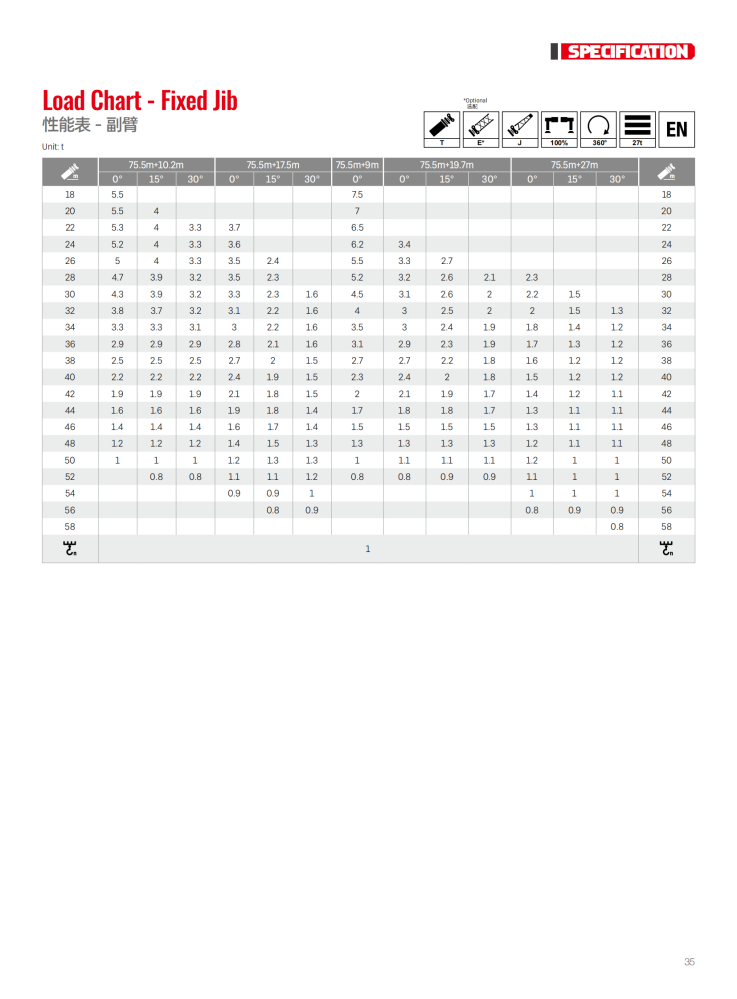

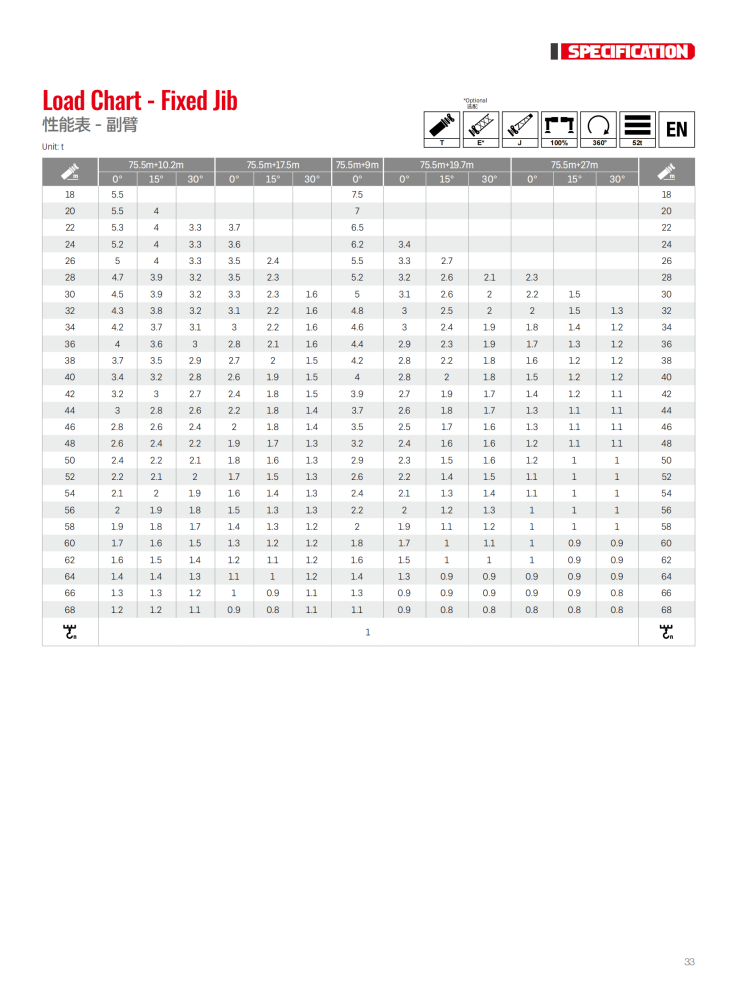

| Max. Jib Length | 27m |

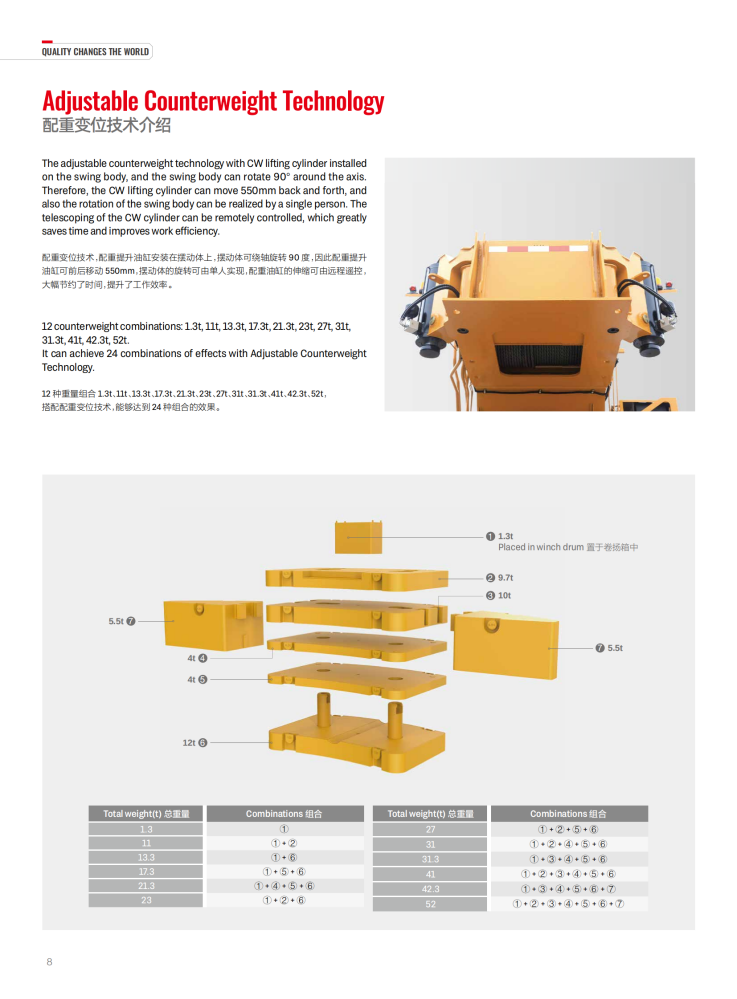

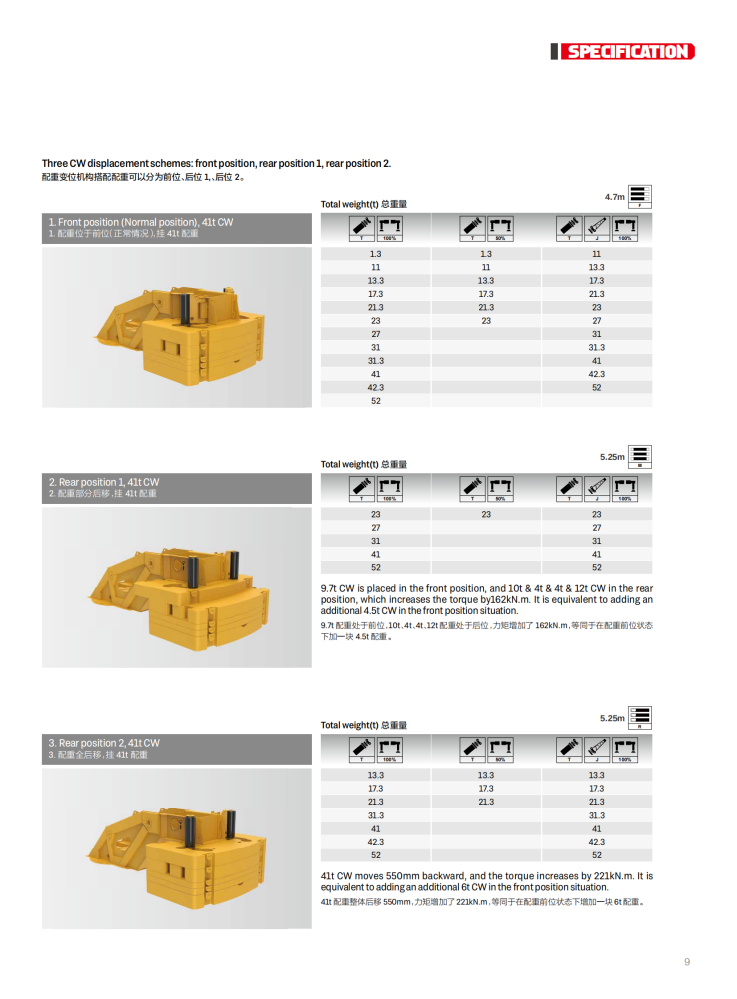

| Counter weight | 52 T |

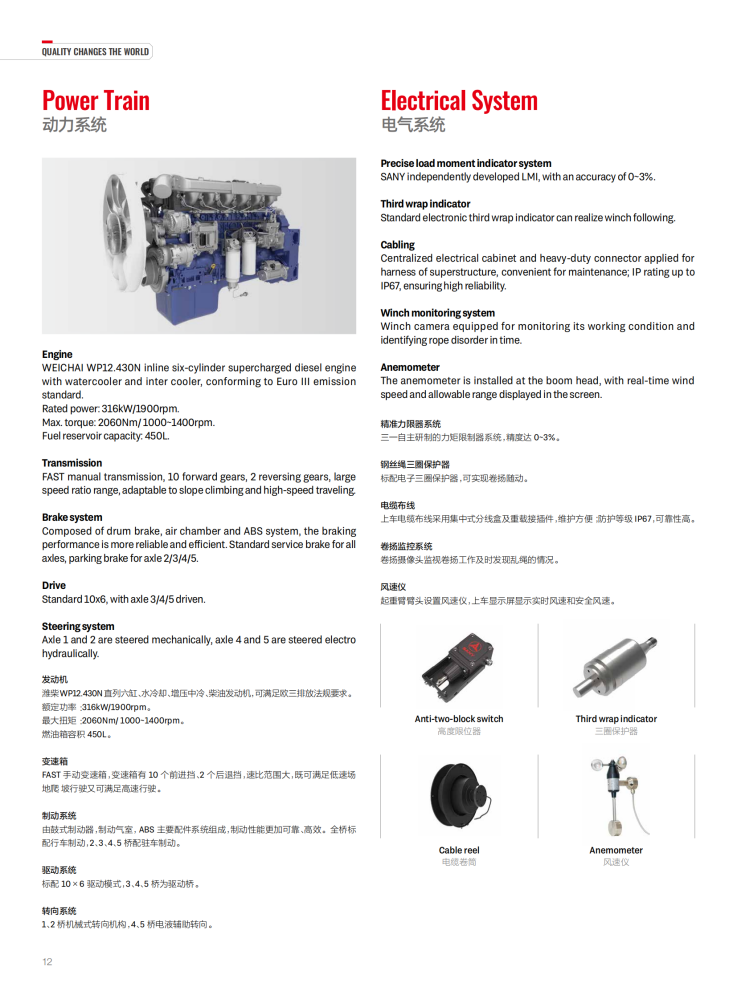

| Engine Model (Emission Standard) | WEICHAI WP12.430N(Euro III) |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 10×6×8 |
| Max. Gradeability | 45% |
| Available Districts | LHD area |
