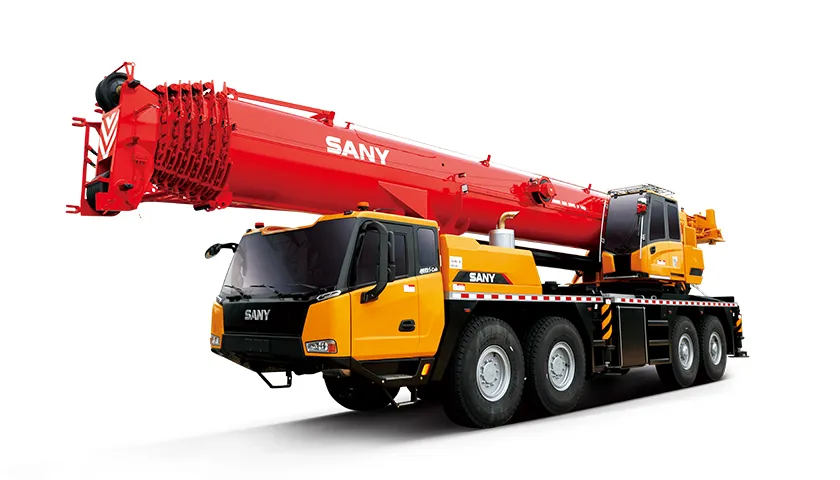

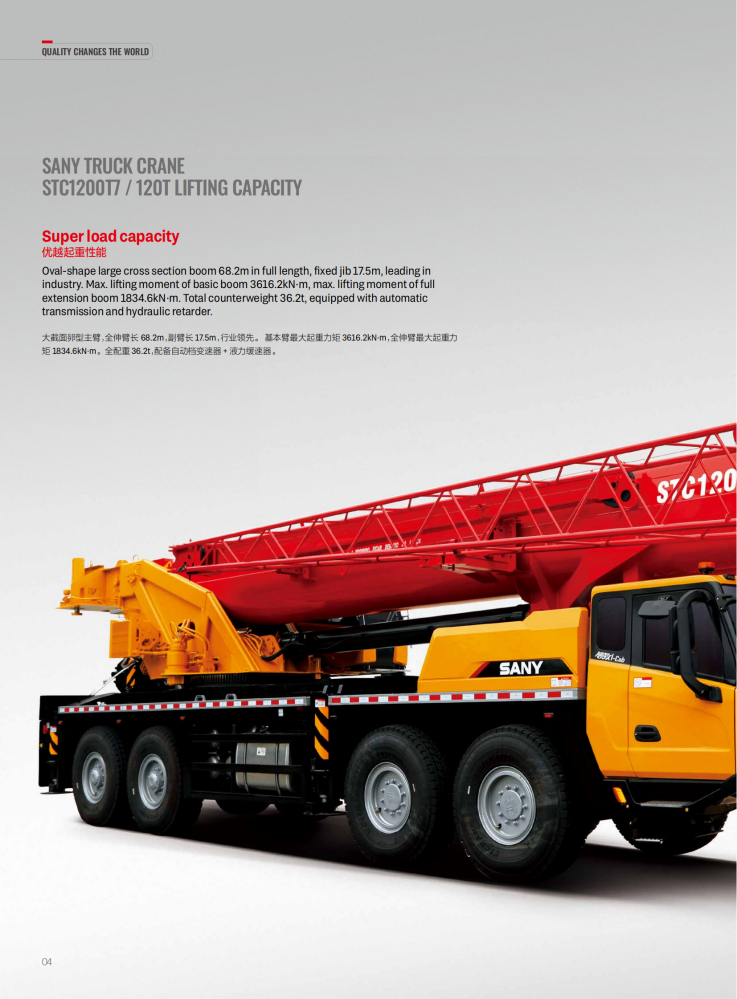

STC1200T7
The STC1200T7 is a powerful 120-ton truck crane. With a maximum lifting capacity of 120 tons and exceptional lifting torque, its seven-section boom reaches a full 63 meters in length. With a 33.5-meter jib, the maximum lifting height reaches 96.5 meters, enabling an extremely wide operating range.
120 T
68.2 m
95.2 m

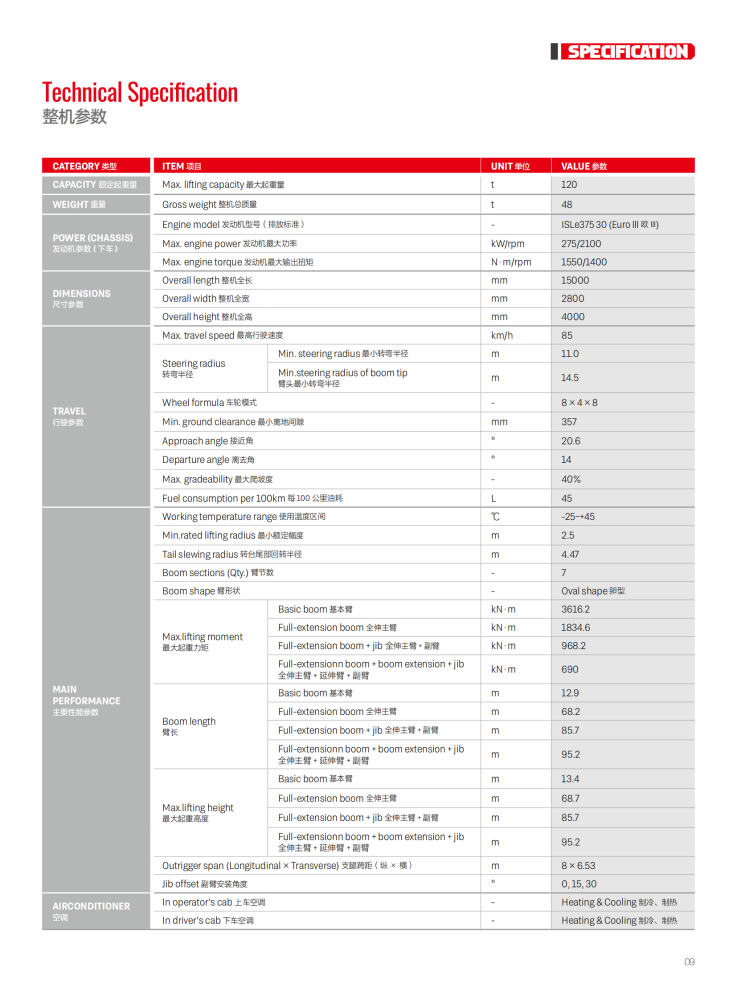

| Max. Lifting Capacity | 120T |
| Max. Lifting Height | 95.2m |
| Max. Lifting Moment | 3616.2kN.m |
| Max. Boom Length | 68.2m |
| Max. Jib Length | 17.5m |

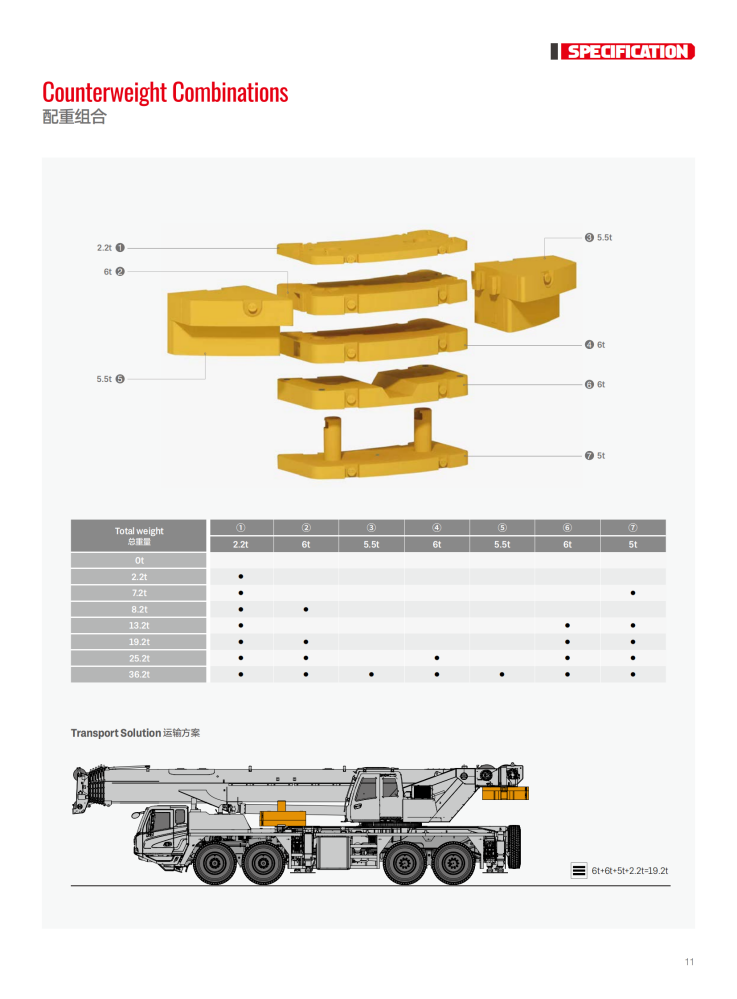

| Counter weight | 36.2 T |
| Engine Model (Emission Standard) | 275/2100 |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 8×4×8 |
| Max. Gradeability | 40% |
| Available Districts | LHD |
