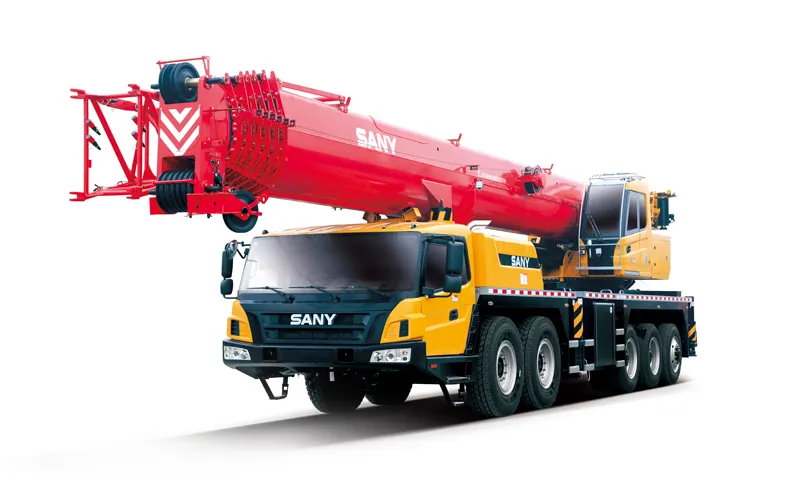

STC1100T7-1
The STC1100T7-1 is a 110-ton truck crane with exceptional lifting capacity. Its maximum lifting capacity reaches 110 tons. Its seven-section main boom reaches a full extension of 70 meters. With the jib, it reaches a maximum lifting height of 102.5 meters, covering a wide range of operating areas. Its powerful power and stable and reliable transmission ensure excellent driving performance. Its advanced control system ensures precise and convenient operation.
110 T
60 m
87 m
| Max. Lifting Capacity | 110T |

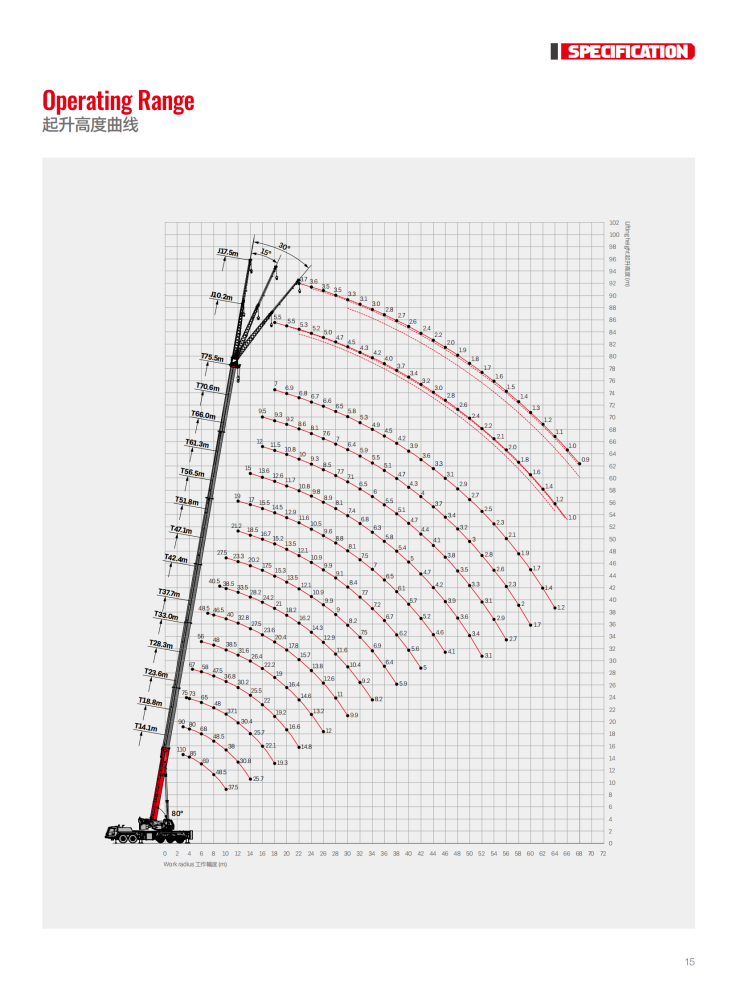

| Max. Lifting Height | 102.5m |
| Max. Lifting Moment | 4057kN.m |

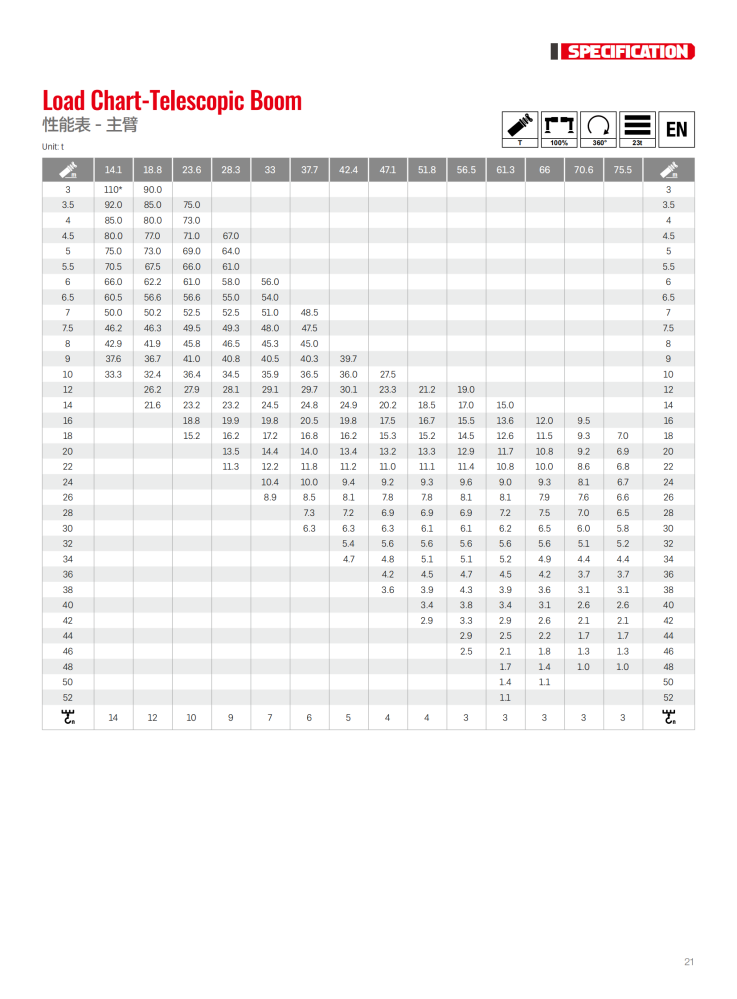

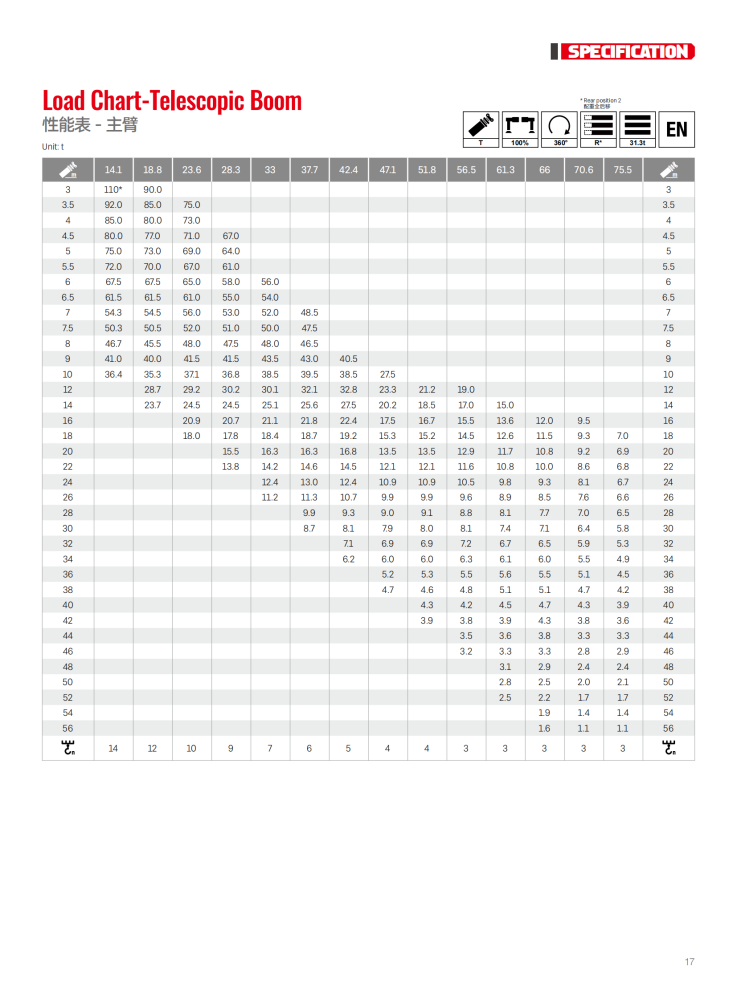

| Max. Boom Length | 75.5m |

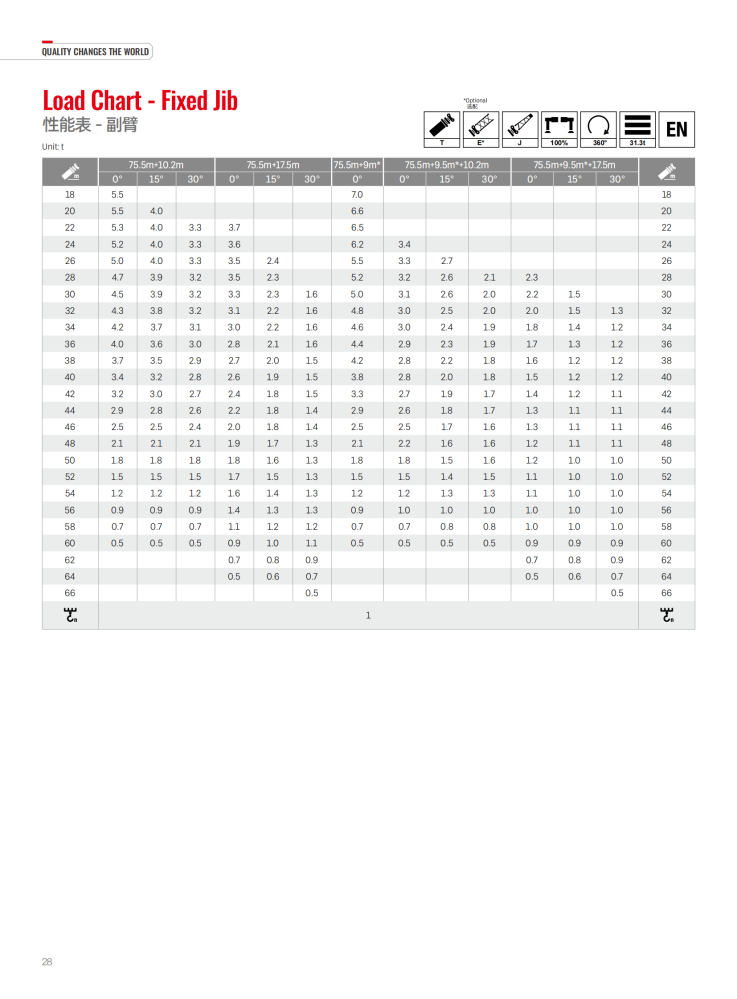

| Max. Jib Length | 27m |
| Counter weight | 41 T |
| Engine Model (Emission Standard) | WEICHAI WP12.430N (Euro Ⅲ) |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 10×6×6 |
| Max. Gradeability | 43% |
| Available Districts | LHD area |
