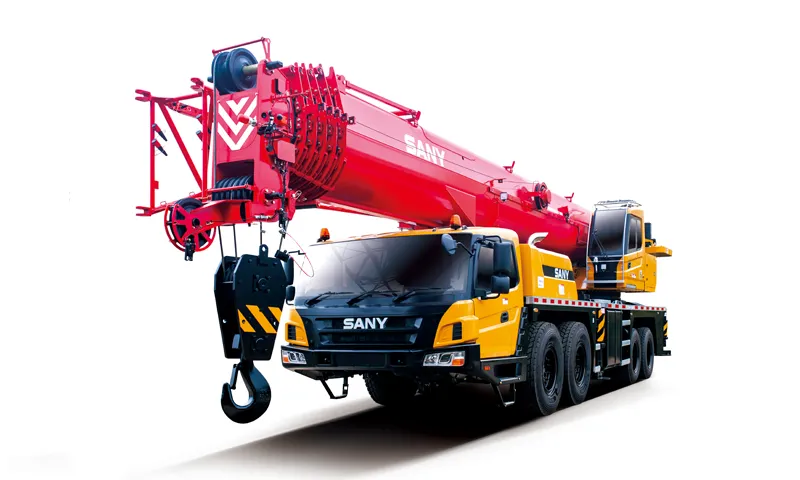

STC1000T6

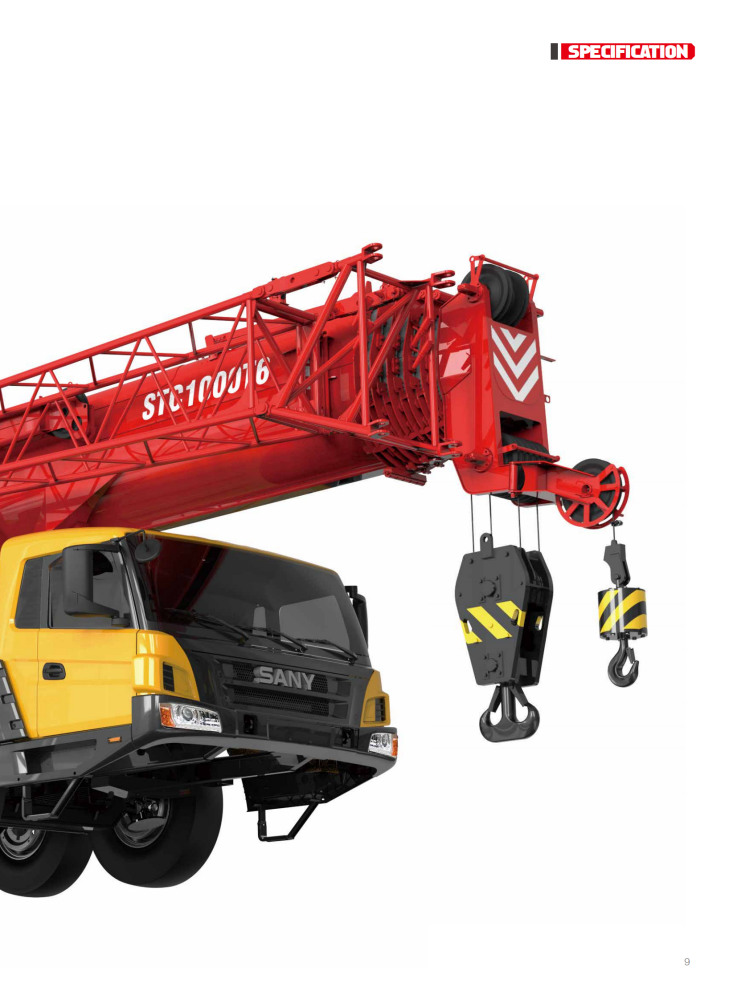

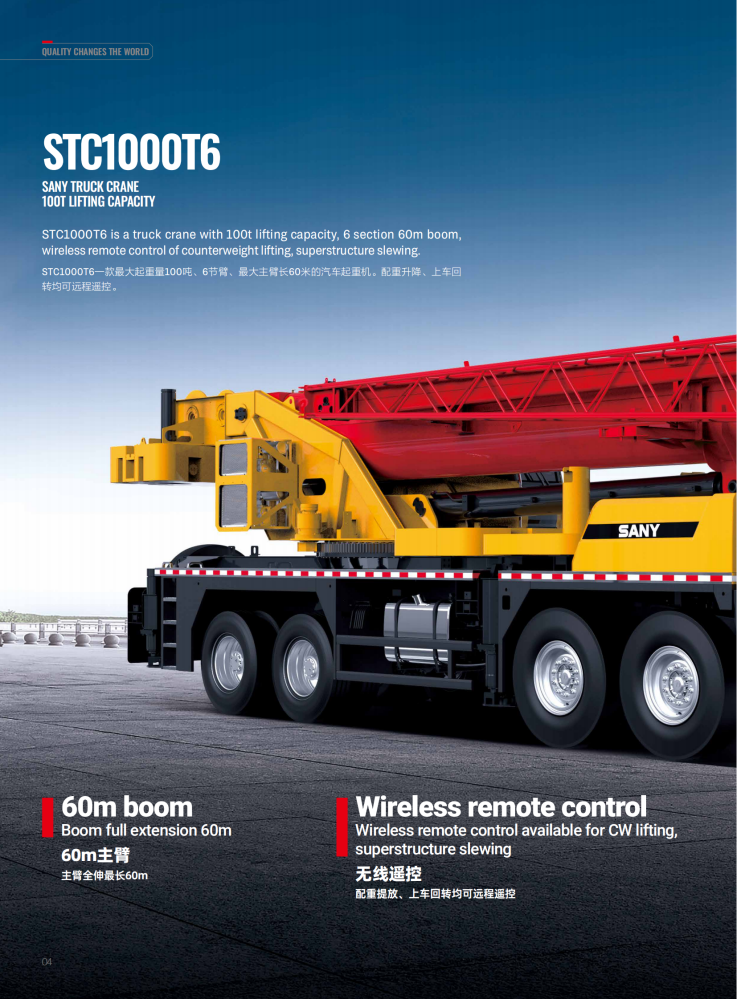

The STC1000T6 is a 100-ton truck crane with exceptional lifting capabilities. It has a maximum lifting capacity of 100 tons and a maximum lifting torque of 3557.5 kN·m. Its six-section boom reaches 60 meters when fully extended, and comes standard with a 27-meter jib. Its maximum lifting height is 87 meters, allowing it to cover a wide range of operating areas. Its powerful powertrain and reliable transmission ensure excellent driving performance.
100 T
60 m
87 m

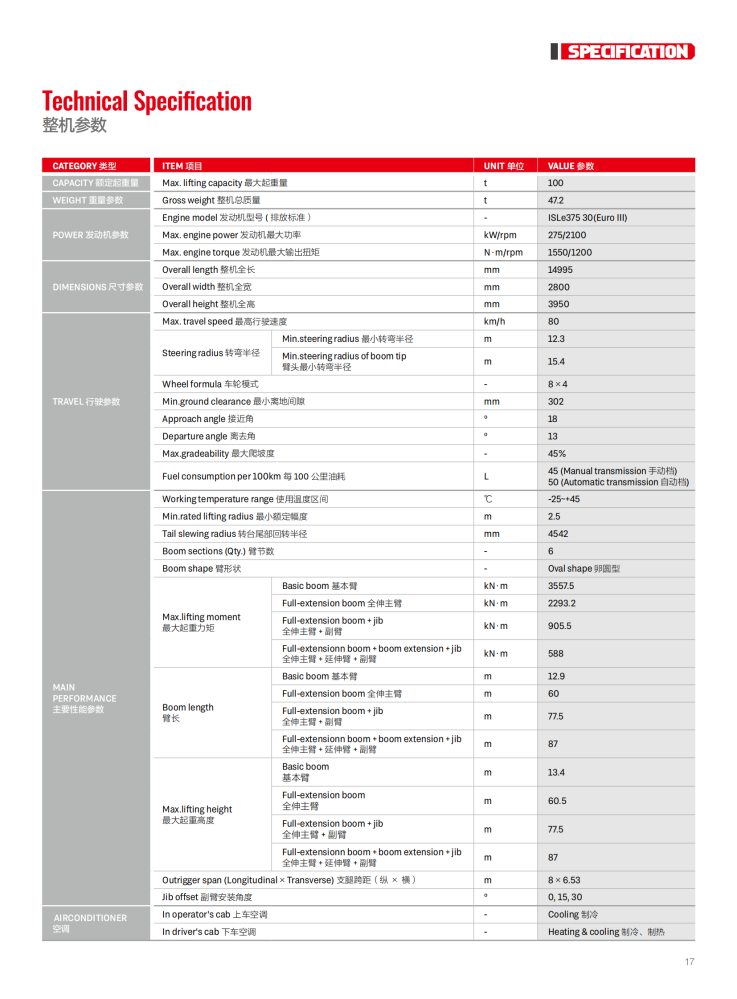

| Max. Lifting Capacity | 100T |

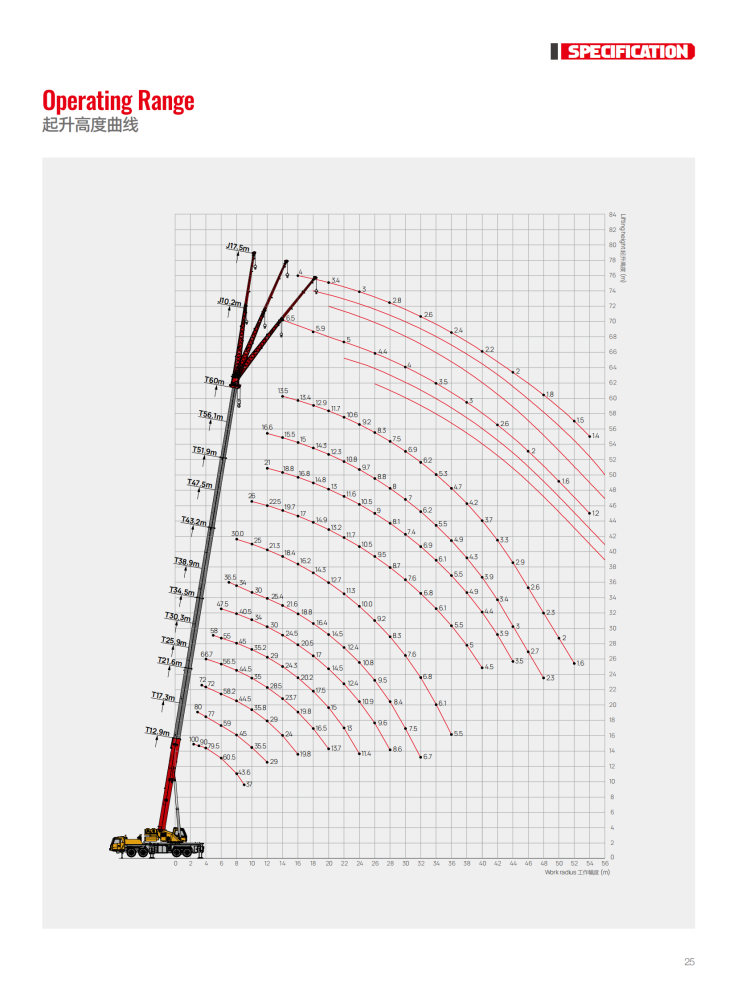

| Max. Lifting Height | 87m |
| Max. Lifting Moment | 3557.5kN.m |

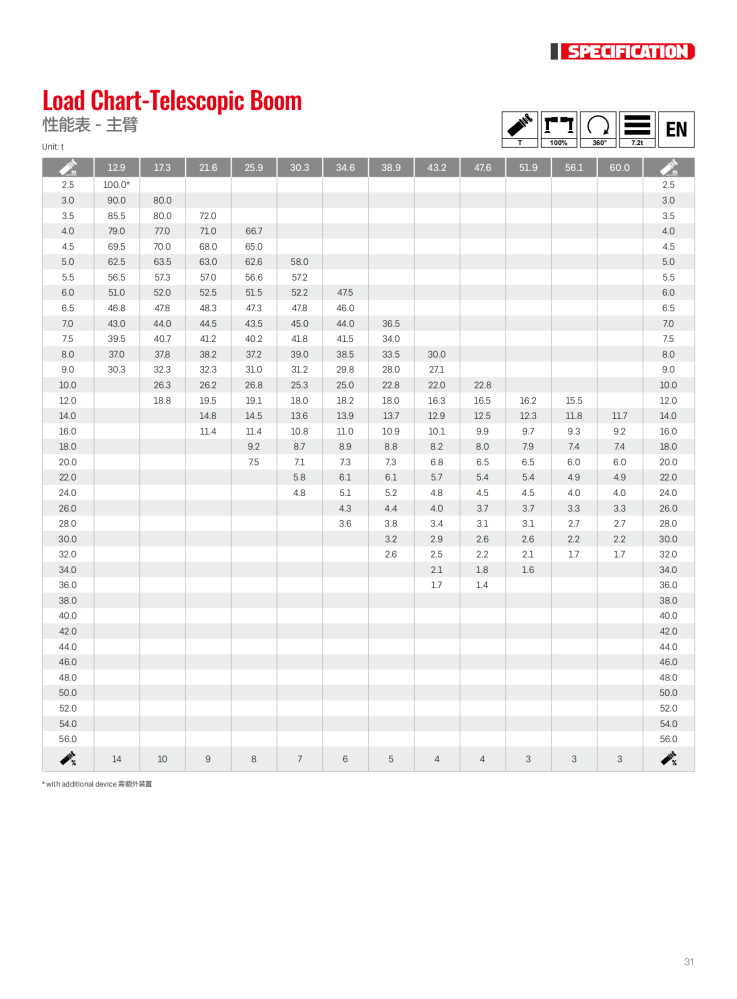

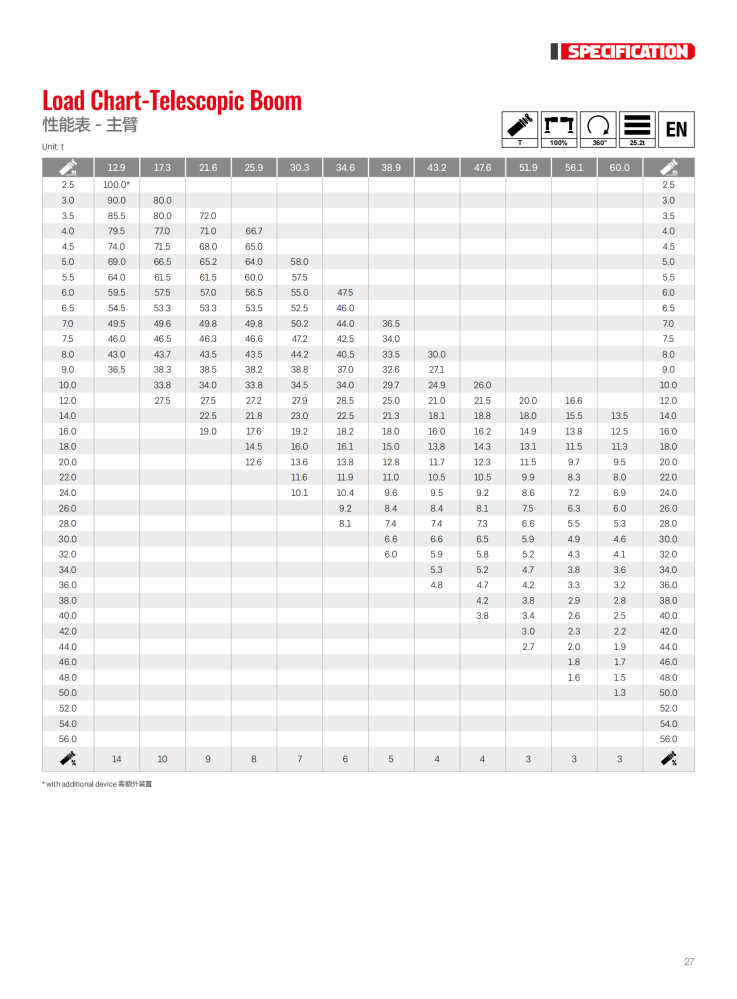

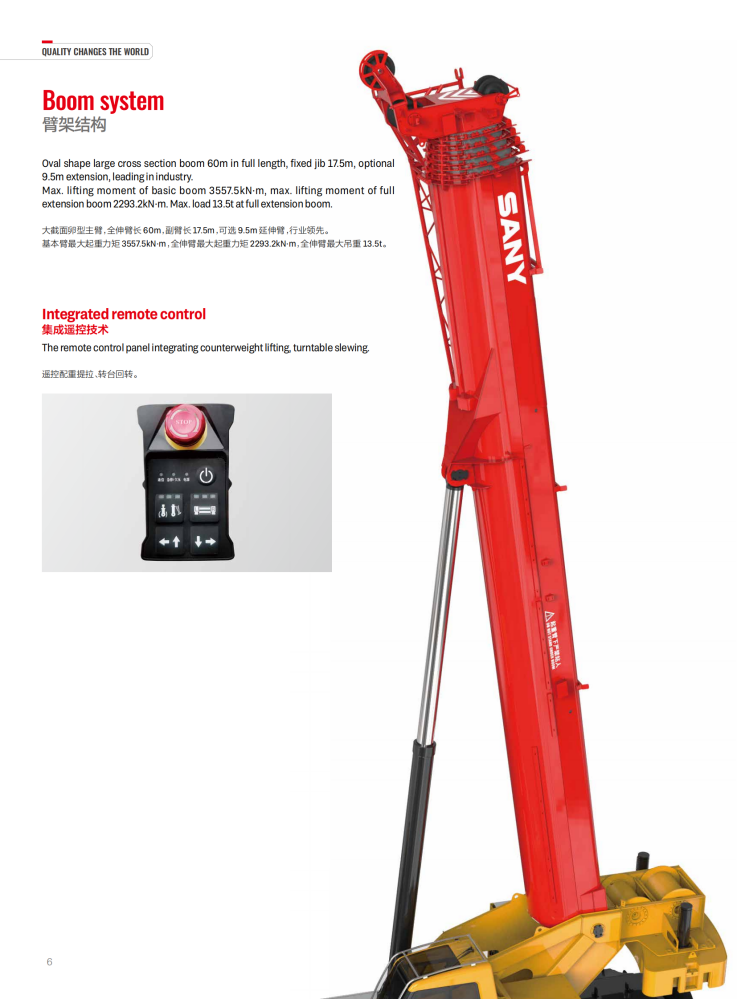

| Max. Boom Length | 60m |

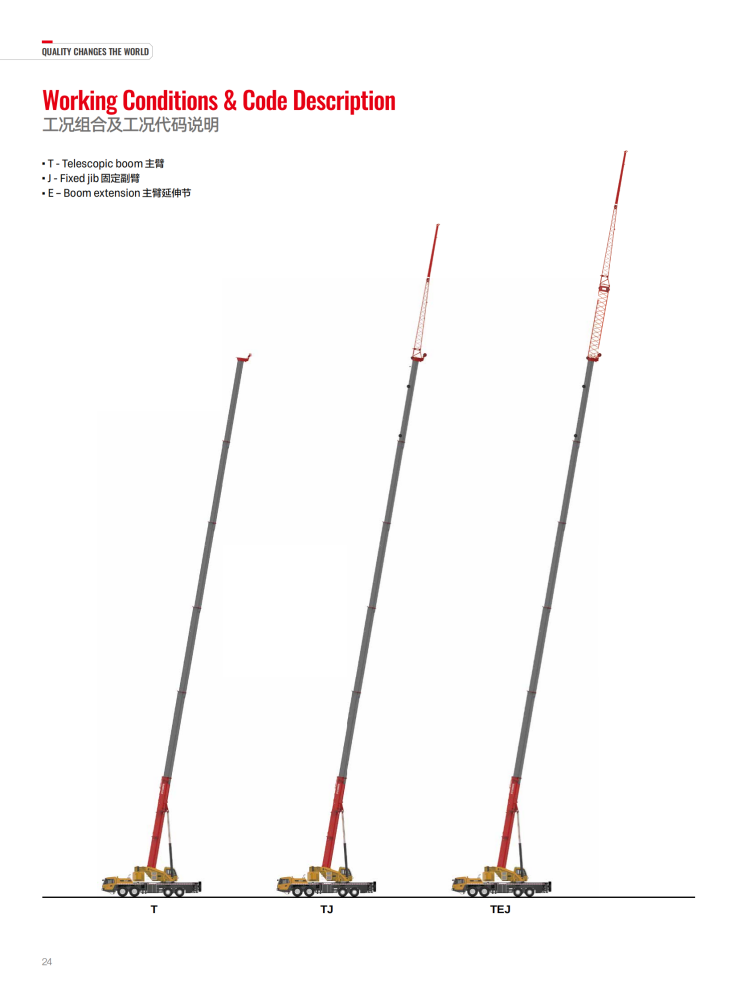

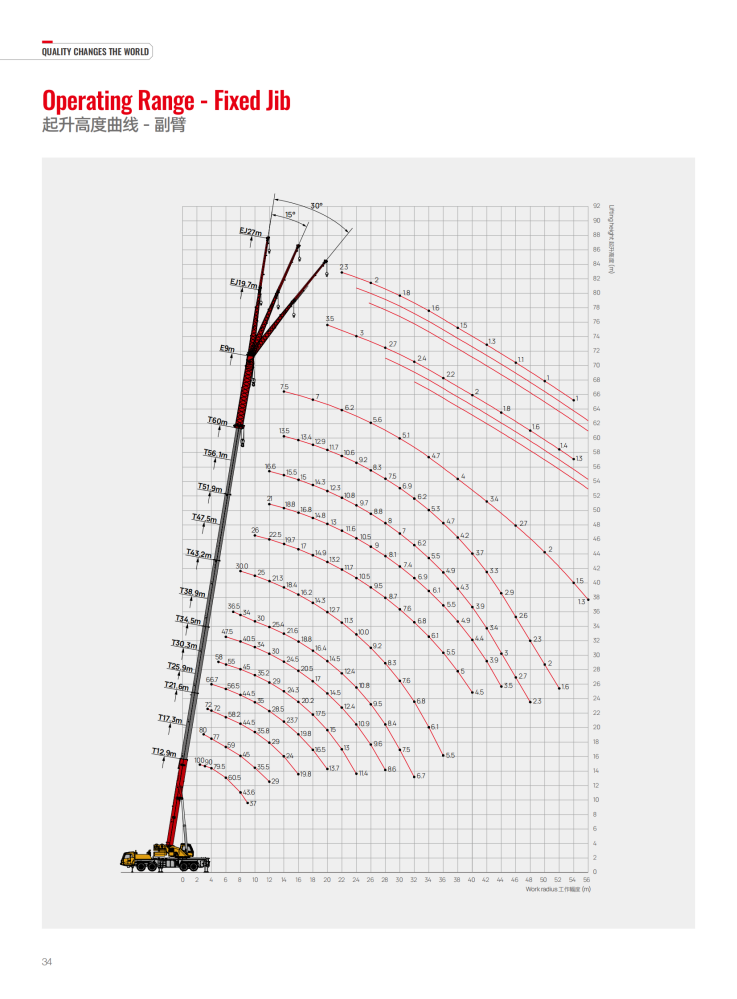

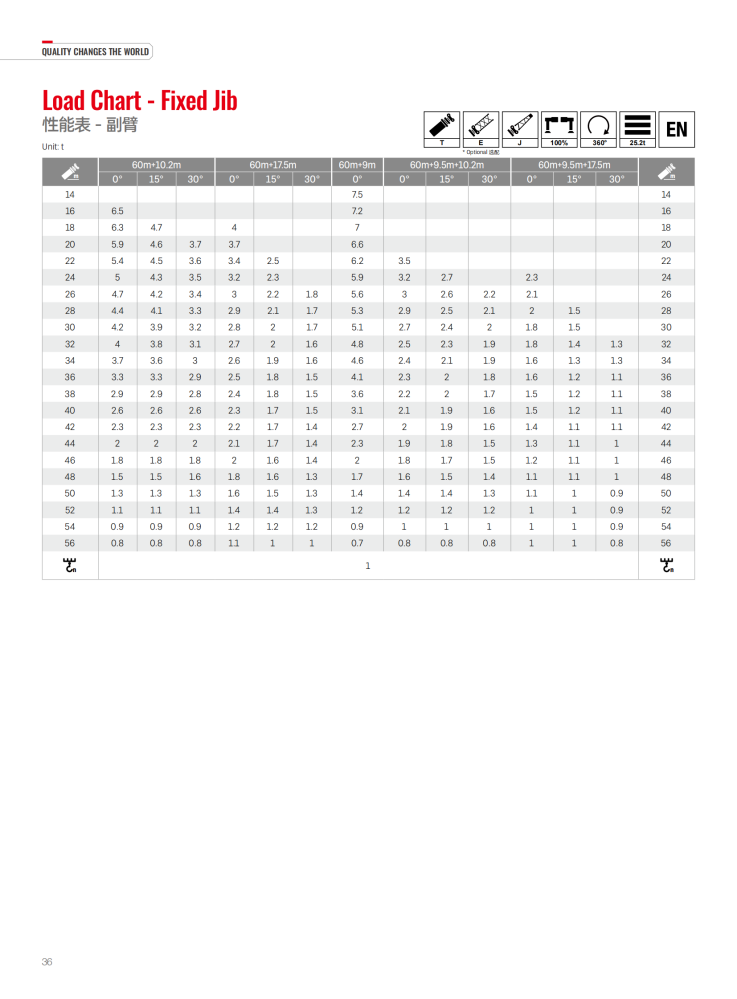

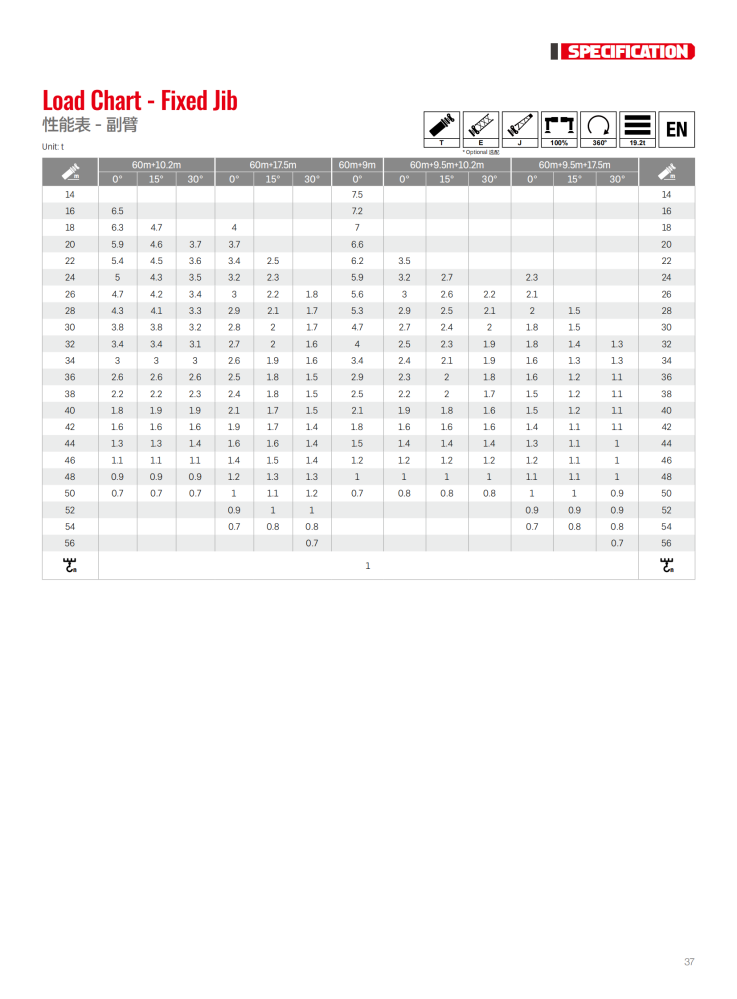

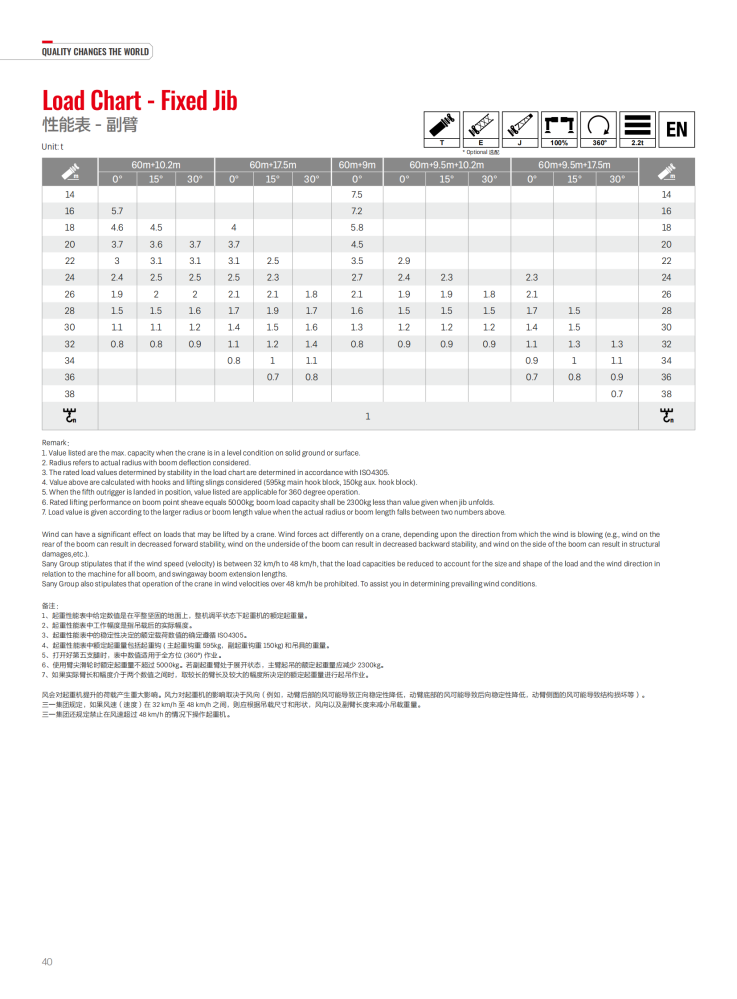

| Max. Jib Length | 27m |

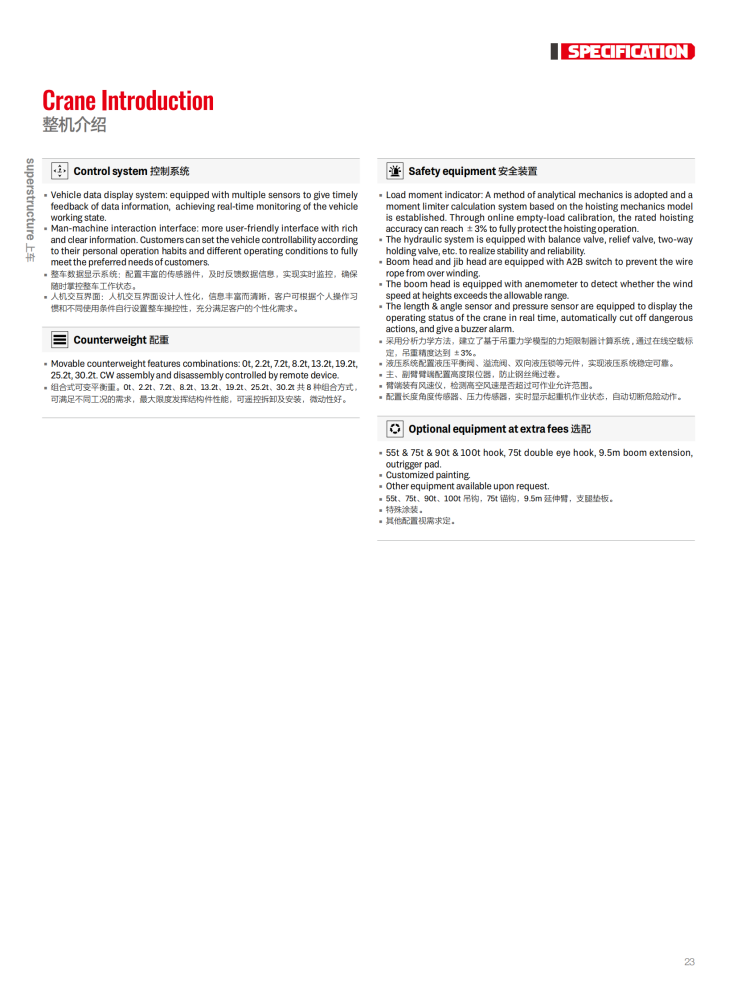

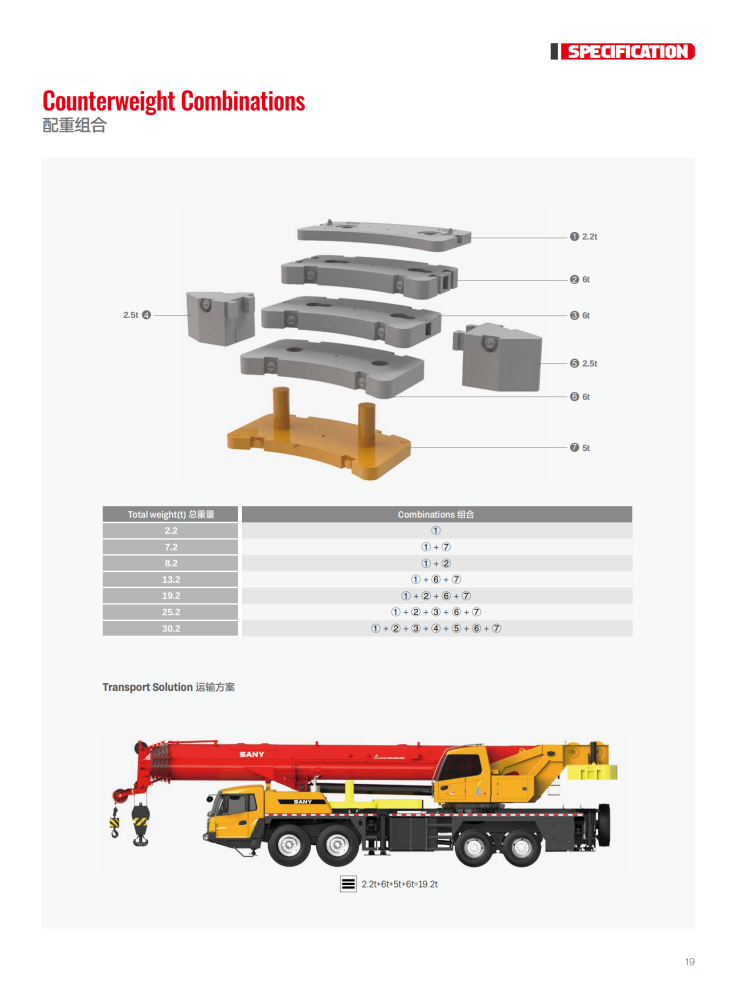

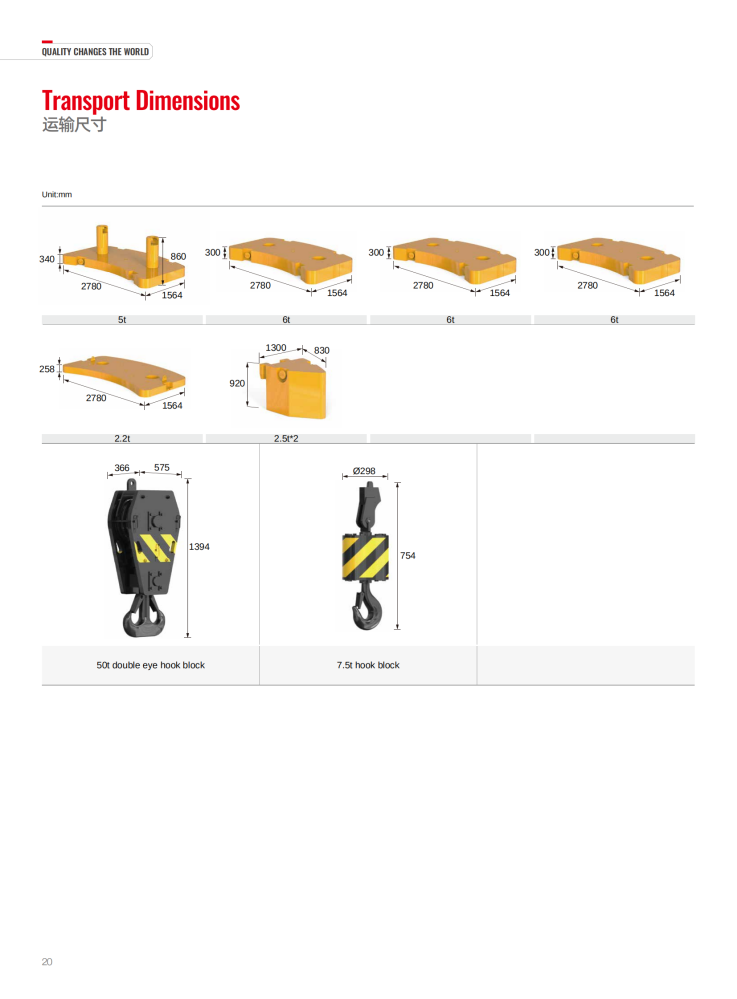

| Counter weight | 30.2 T |

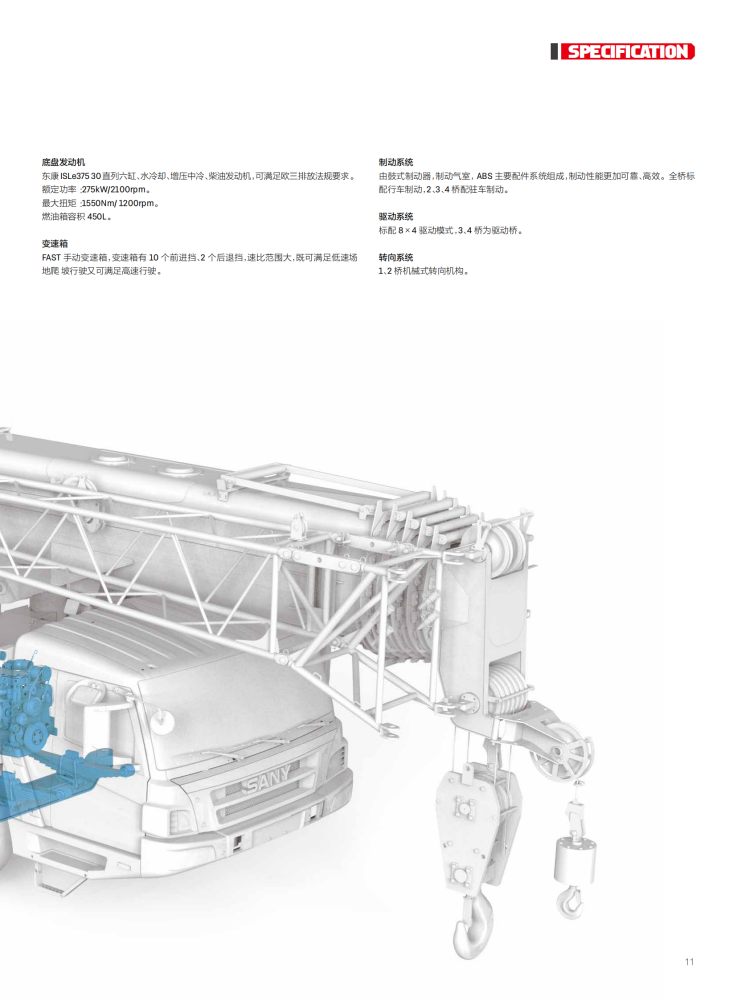

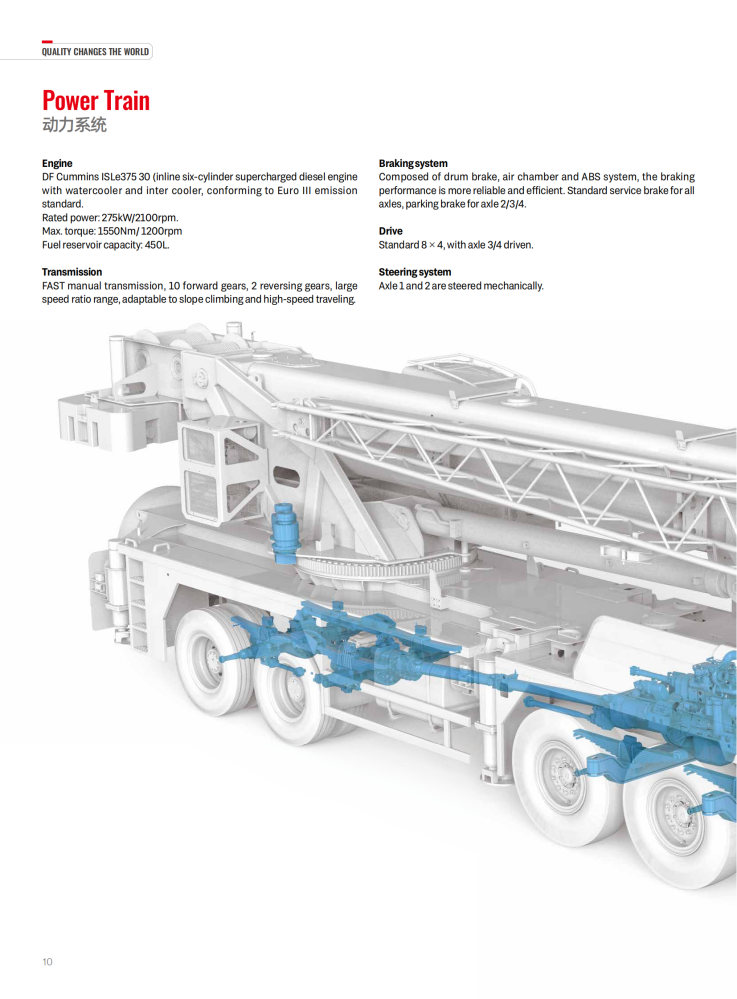

| Engine Model (Emission Standard) | DF Cummins ISLe375 30 (Euro Ⅲ) |
| Max. Traveling Speed | 80 km/h |
| Wheel Formula | 8×4×4 |
| Max. Gradeability | 45% |
| Available Districts | LHD area |
