STC900T5

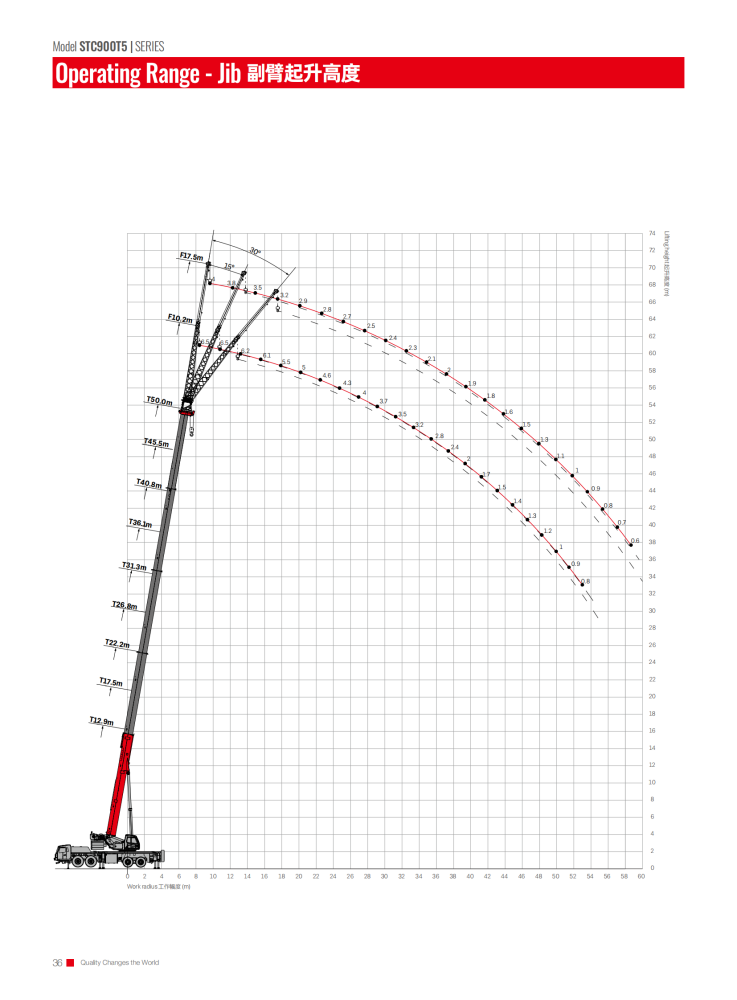

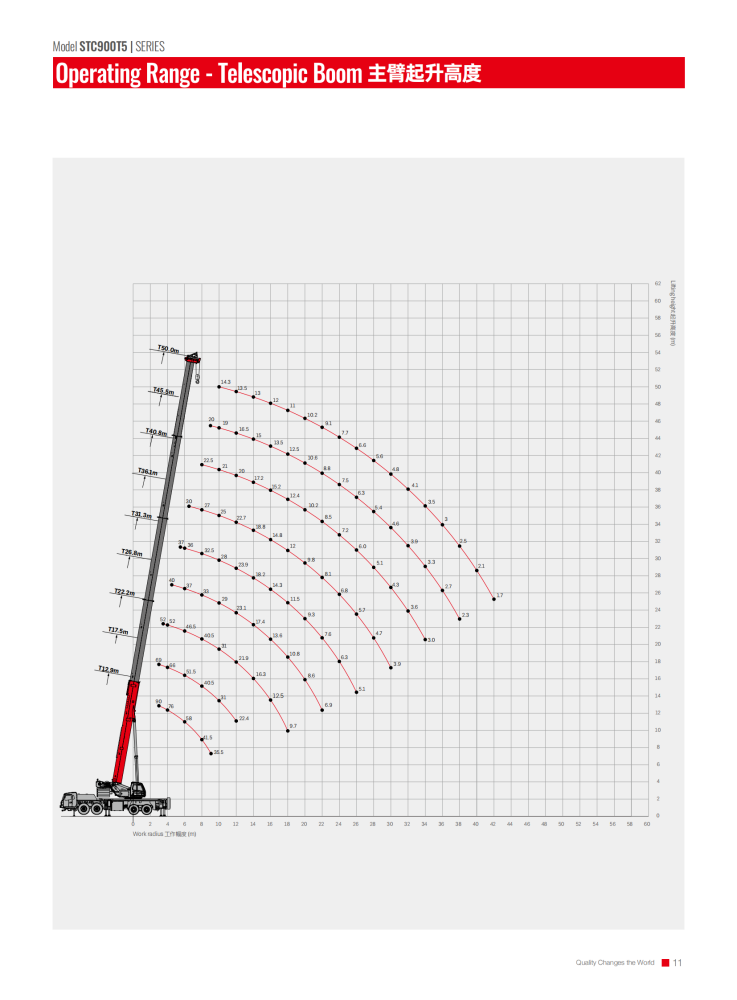

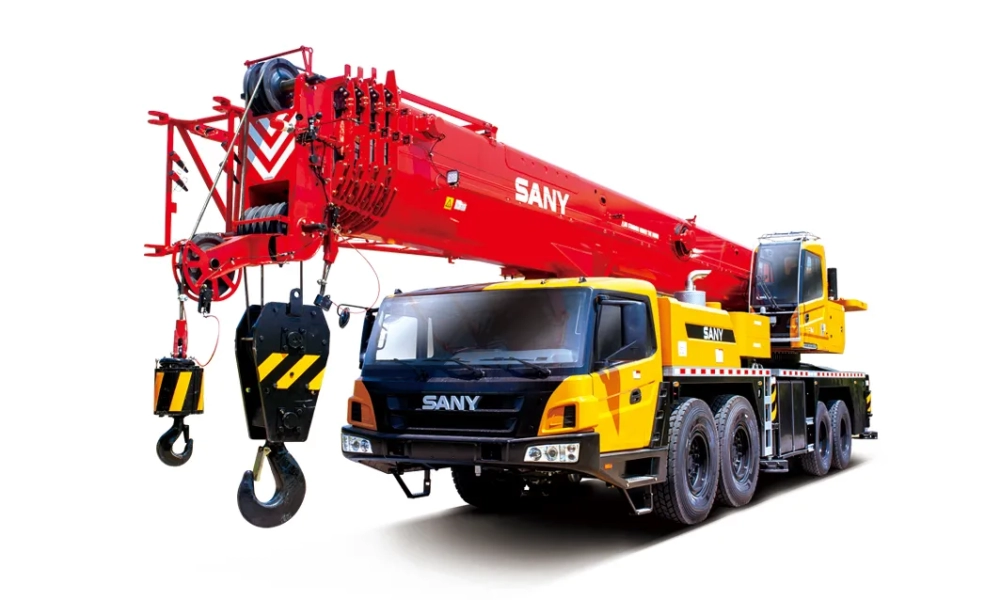

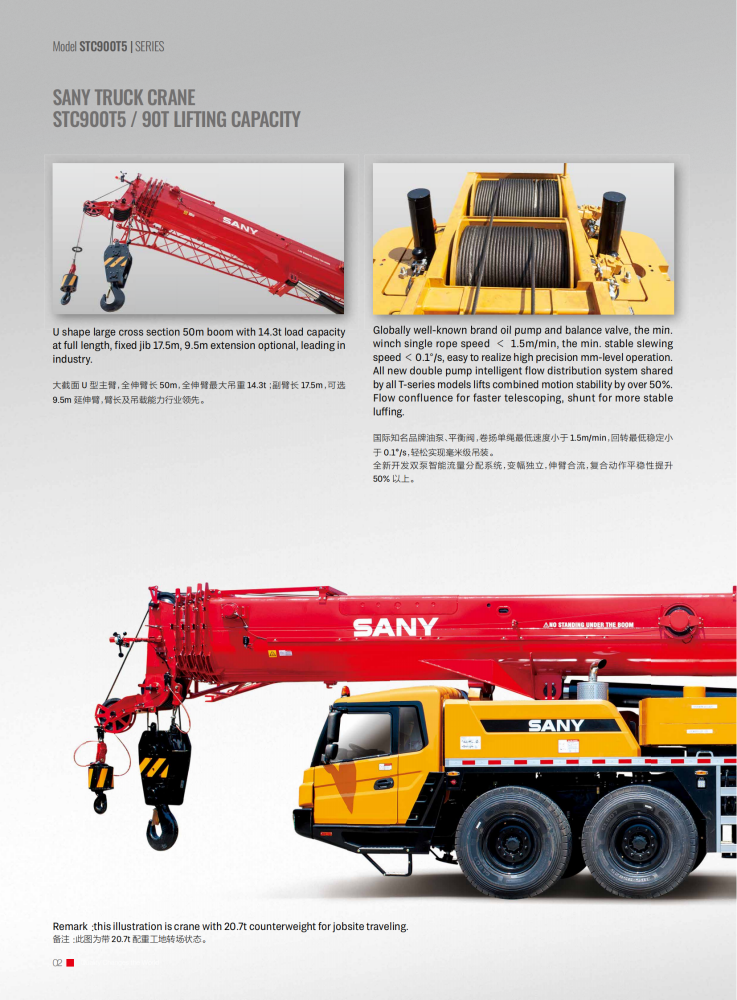

The STC900T5 is a 90-ton truck crane with impressive lifting capabilities. It has a maximum lifting capacity of 90 tons and a maximum lifting torque of 3,704 kN·m. Its five-section main boom features a large-section design and a fully extended length of 50.6 meters. It comes standard with a 17.5-meter jib and a 9.5-meter extension, achieving a maximum lifting height of 77.6 meters. With the optional 9.5-meter extension, the maximum lifting height reaches 87.1 meters, enabling a wide range of work areas.
90 T
50 m
77 m

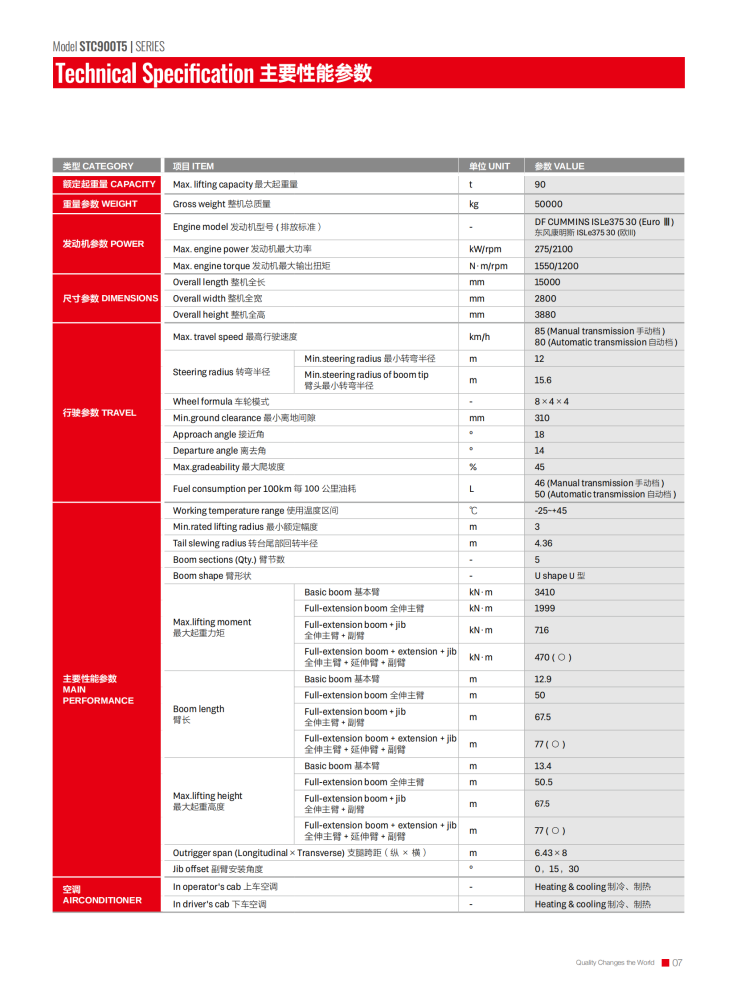

| Max. Lifting Capacity | 90T |
| Max. Lifting Height | 77m |
| Max. Lifting Moment | 3410kN.m |
| Max. Boom Length | 50m |
| Max. Jib Length | 27m |

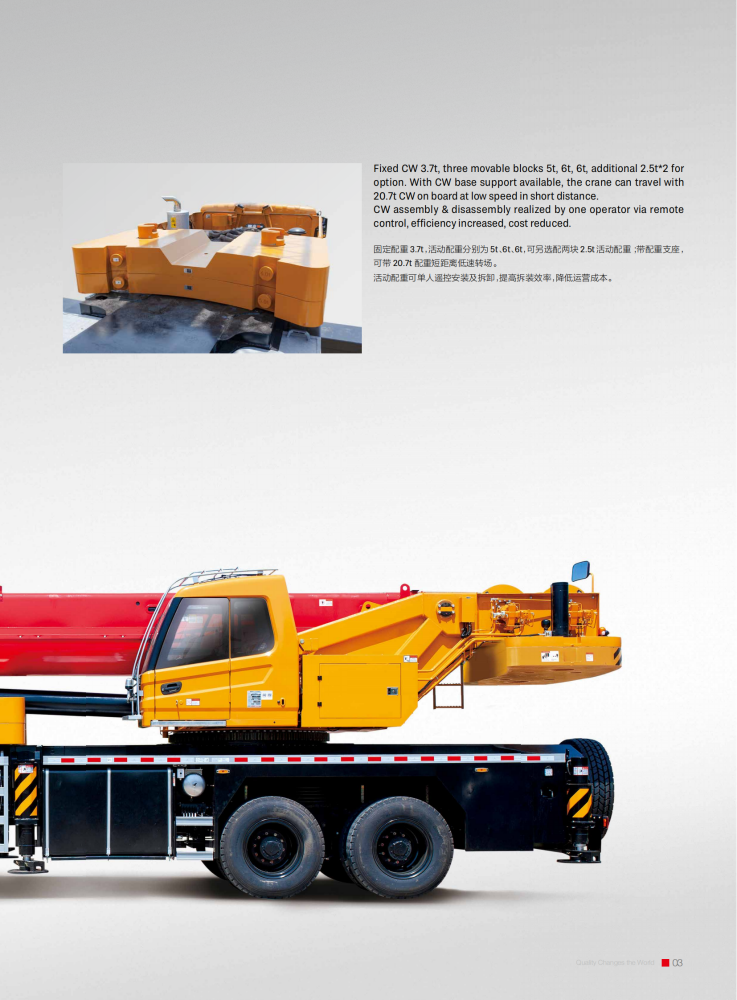

| Counter weight | 20.7 (standard)+ 5 (optional) T |
| Engine Model (Emission Standard) | DF Cummins ISLe375 30 (Euro Ⅲ) |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 8×4×4 |
| Max. Gradeability | 45% |
| Available Districts | LHD countries |
