STC800T5

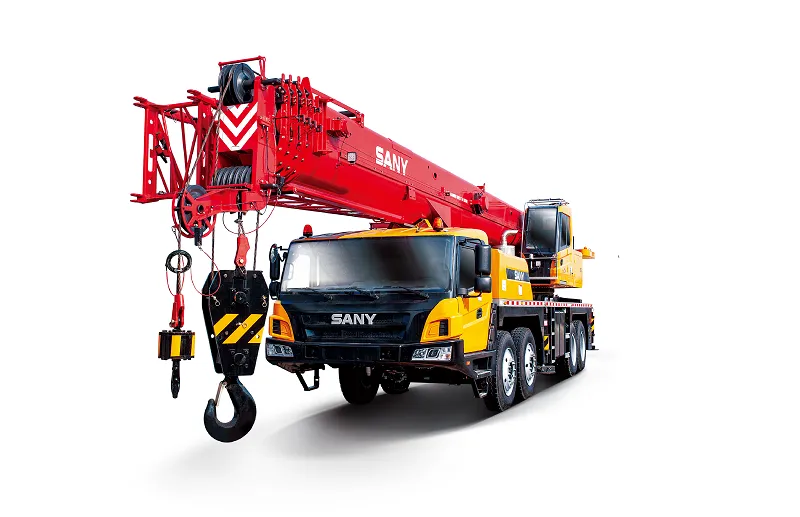

The STC800T5 is an 80-ton truck crane with excellent lifting performance. It has a maximum lifting capacity of 80 tons and a lifting torque of 2,881 kN·m. Its five-section main boom reaches 49.5 meters when fully extended, and a maximum lifting height of 67 meters with a jib, expanding its operating range. It is equipped with a Weichai WP12.400E62 engine, delivering 294 kW/1,900 rpm, providing powerful performance.
80 T
49.5 m

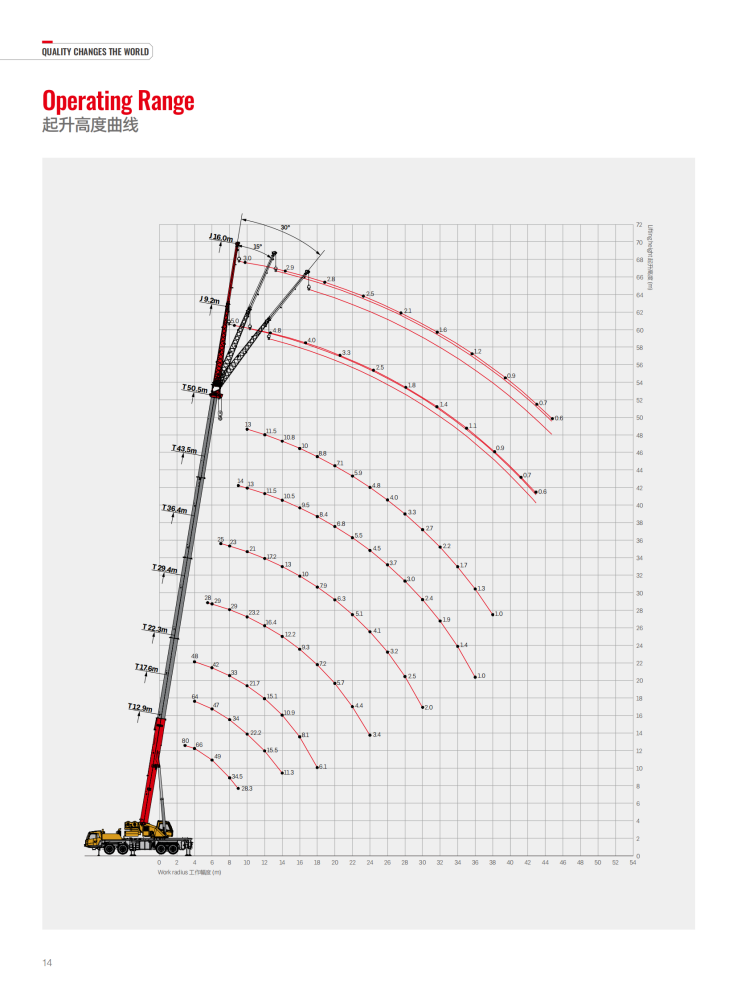

67 m

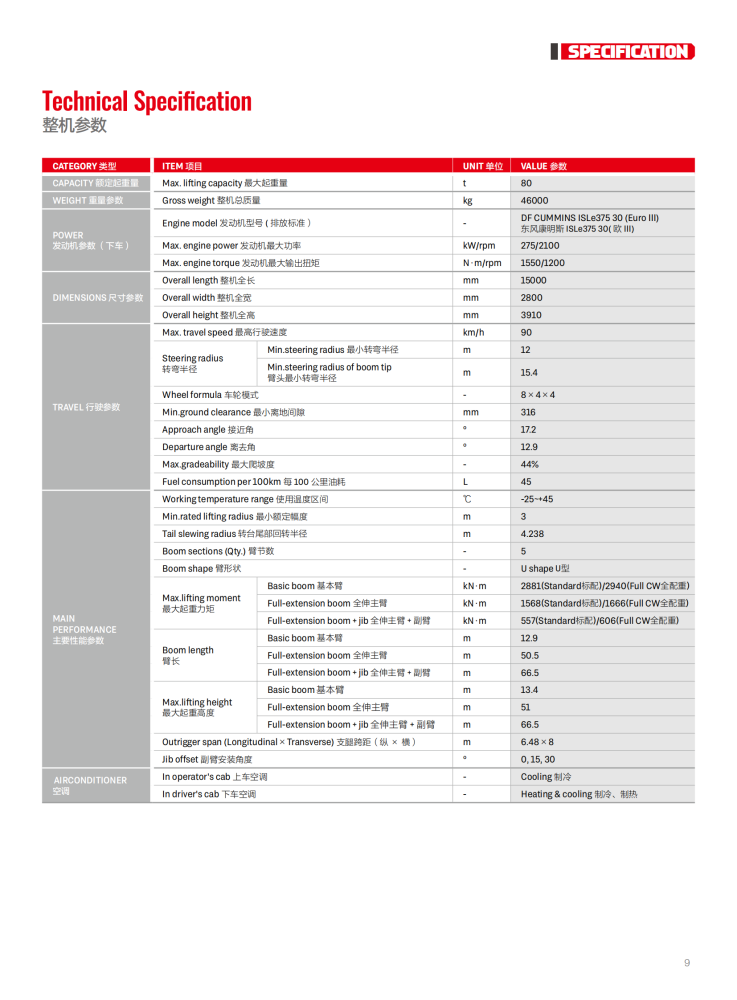

| Max. Lifting Capacity | 80T |
| Max. Lifting Height | 67m |
| Max. Lifting Moment | 2881kN.m |

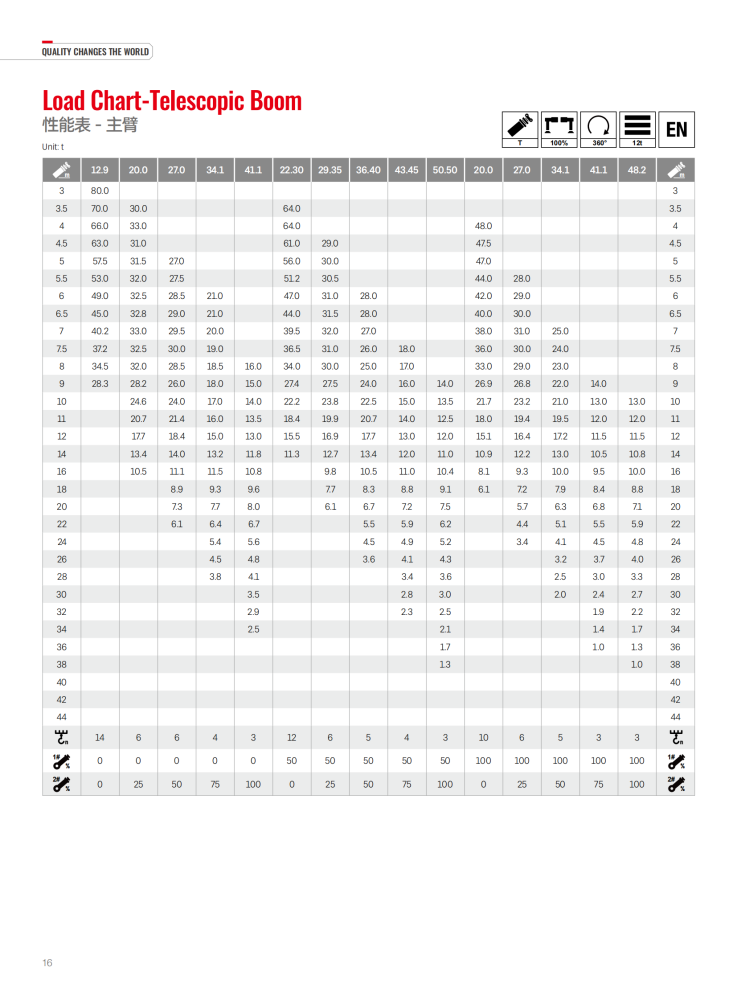

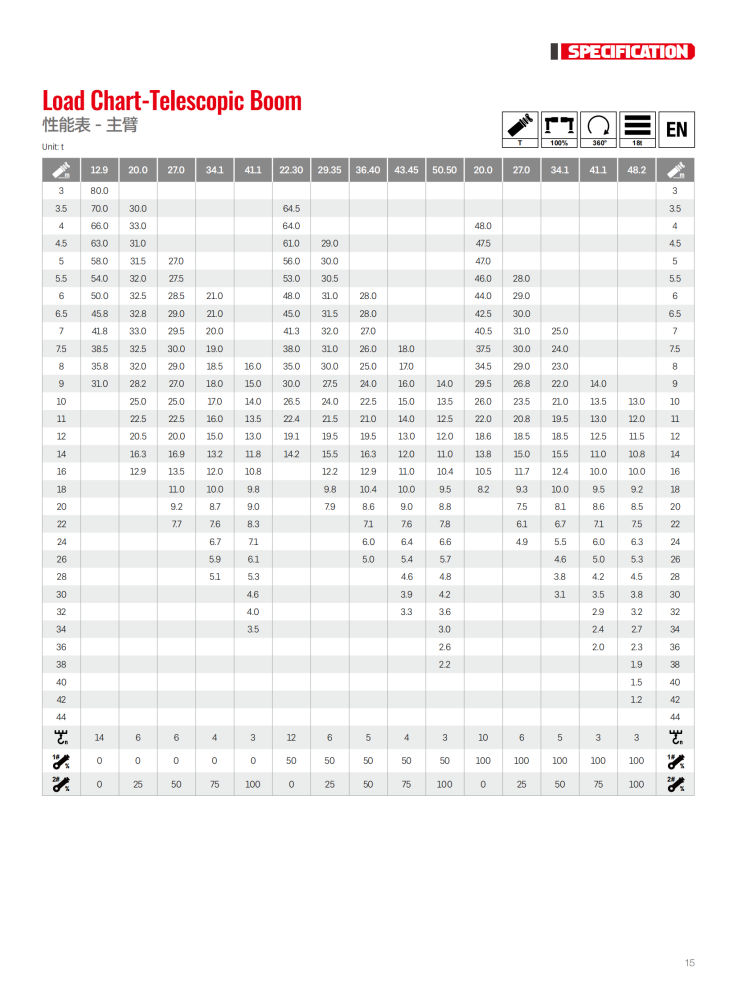

| Max. Boom Length | 49.5m |

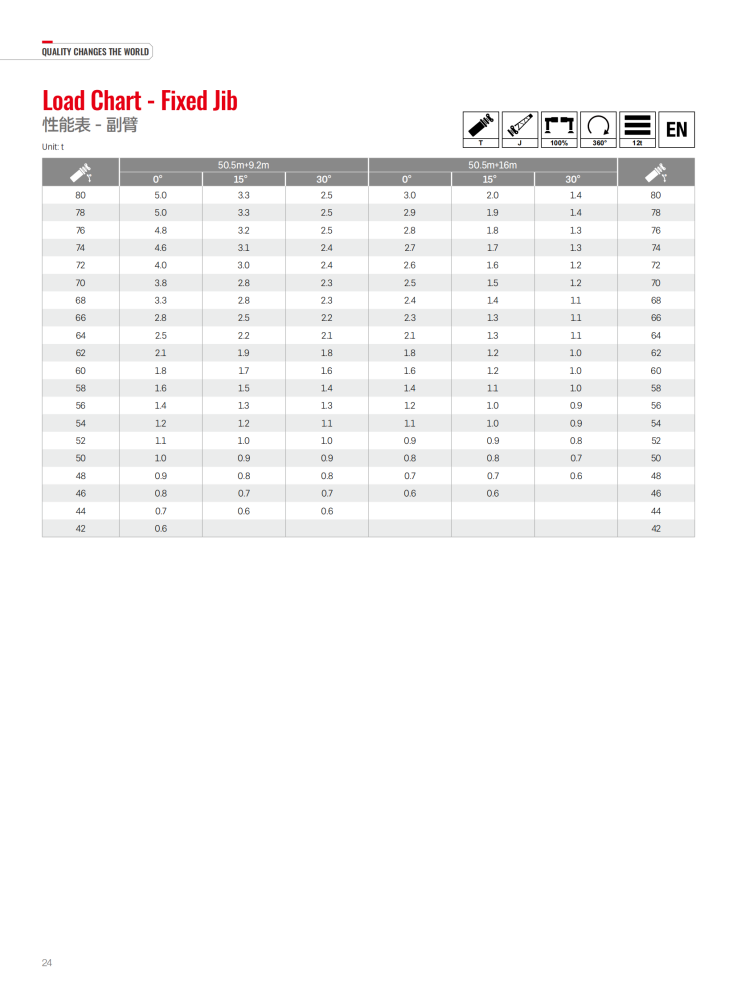

| Max. Jib Length | 17.5m |

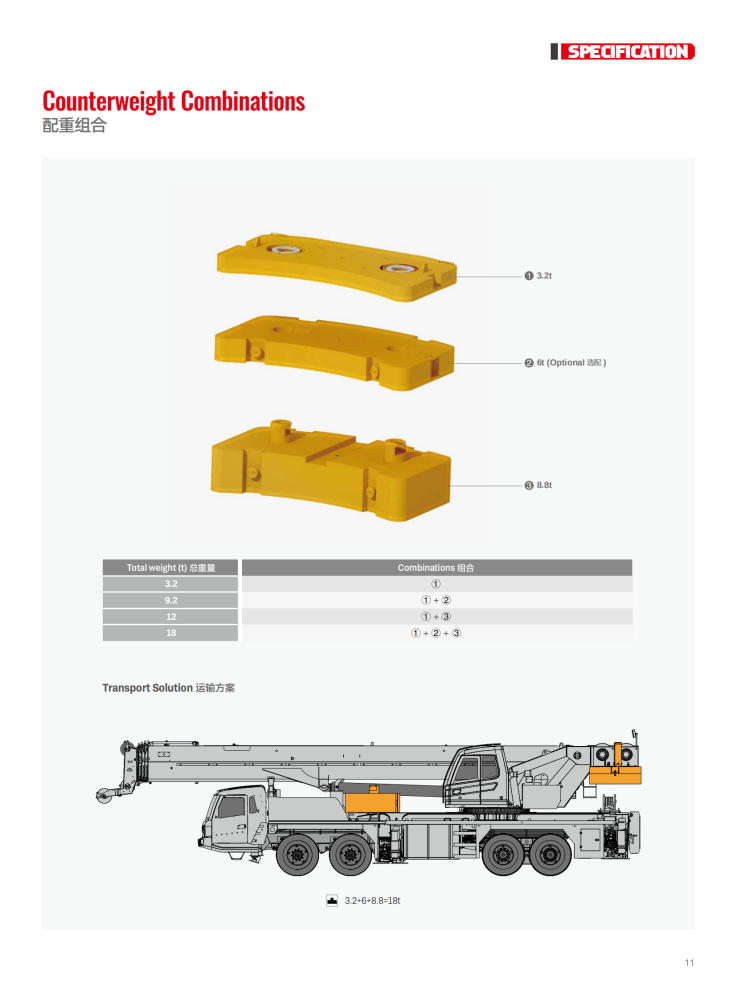

| Counter weight | 10 (standard)+10 (optional) T |

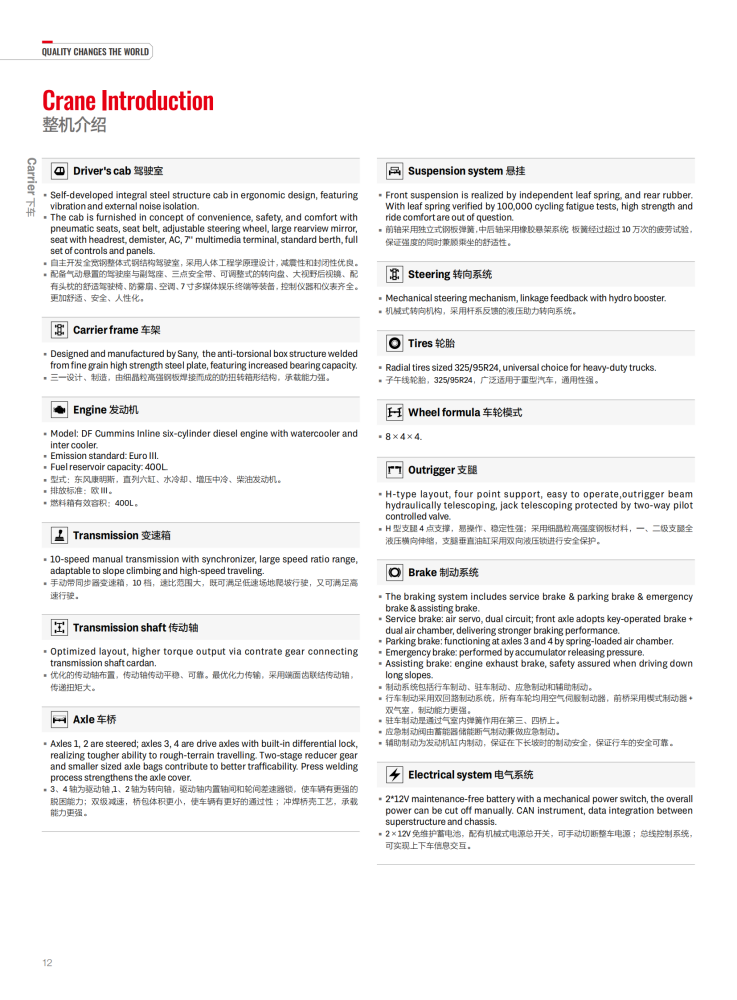

| Engine Model (Emission Standard) | DF Cummins ISLe340 30 (Euro Ⅲ) |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 8×4 |
| Max. Gradeability | 45% |
| Available Districts | RHD / LHD |
