STC800C5

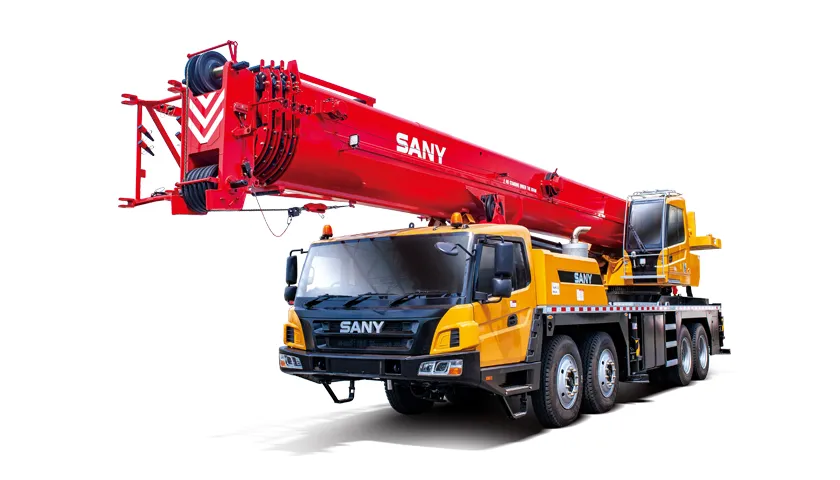

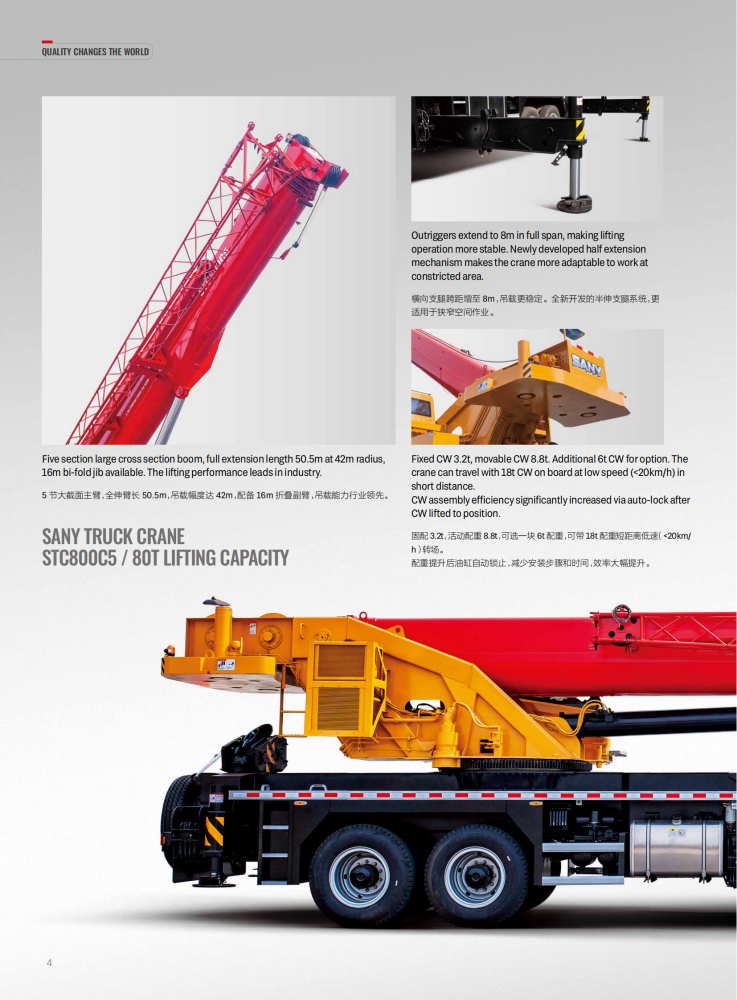

The STC800C5 is an 80-ton truck crane with exceptional lifting performance. It has a maximum lift capacity of 80 tons and a lifting torque of 2,499 to 3,450 kN·m. Its five-section, large-section U-shaped main boom reaches 50.5 meters at full extension, paired with a 17.5-meter jib and an optional 9.5-meter extension, for a maximum lifting height of 78 meters, expanding its reach for high-altitude and remote operations.
80 T
46 m
62.5 m

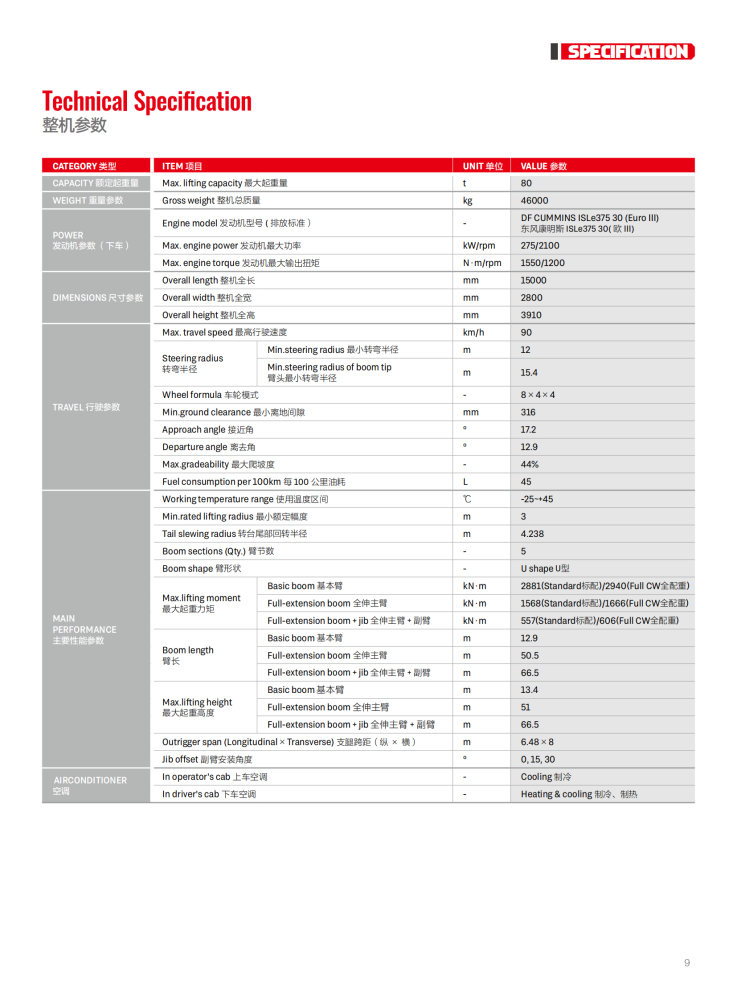

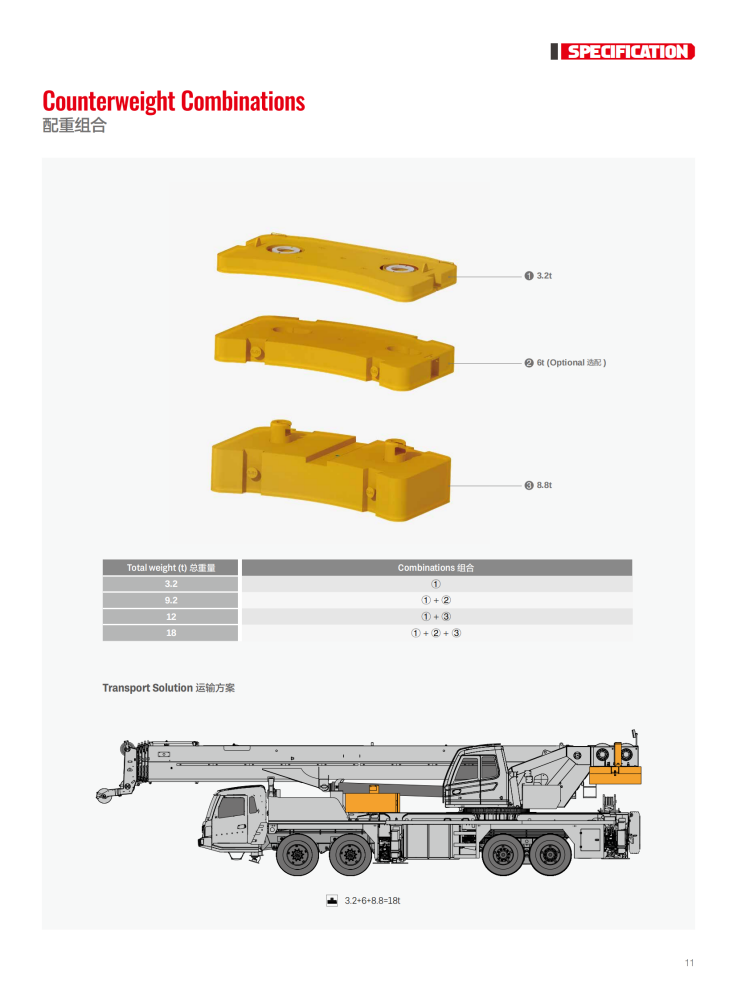

| Counterweight | 12 (standard) +6 (optional)T |
| Max. Lifting Capacity | 80 T |
| Max. Boom Length | 50.5 m |
| Max. jib Length | 16 m |

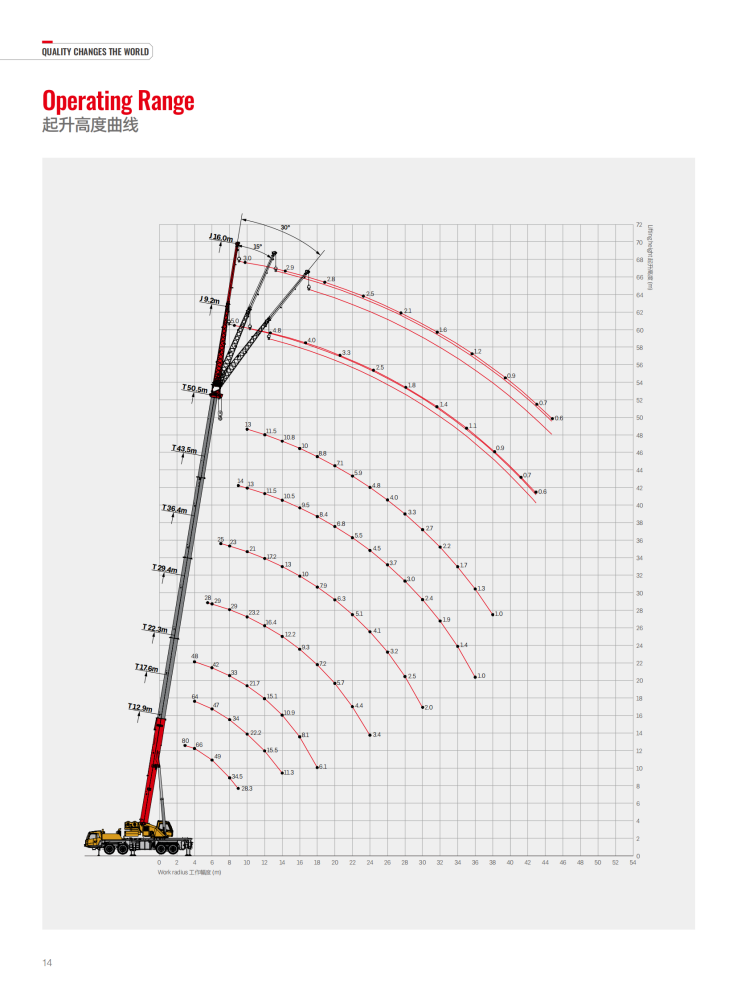

| Max. Lifting Height | 76 m |
| Max. Lifting Moment | 2940 kN·m |
| Available Districts | LHD&RHD |
| Engine Model (Emission Standard) | DF Cummins iSLe340 30 (Euro lll) |
| Max. Gradeability | 44% |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 8×4 |
