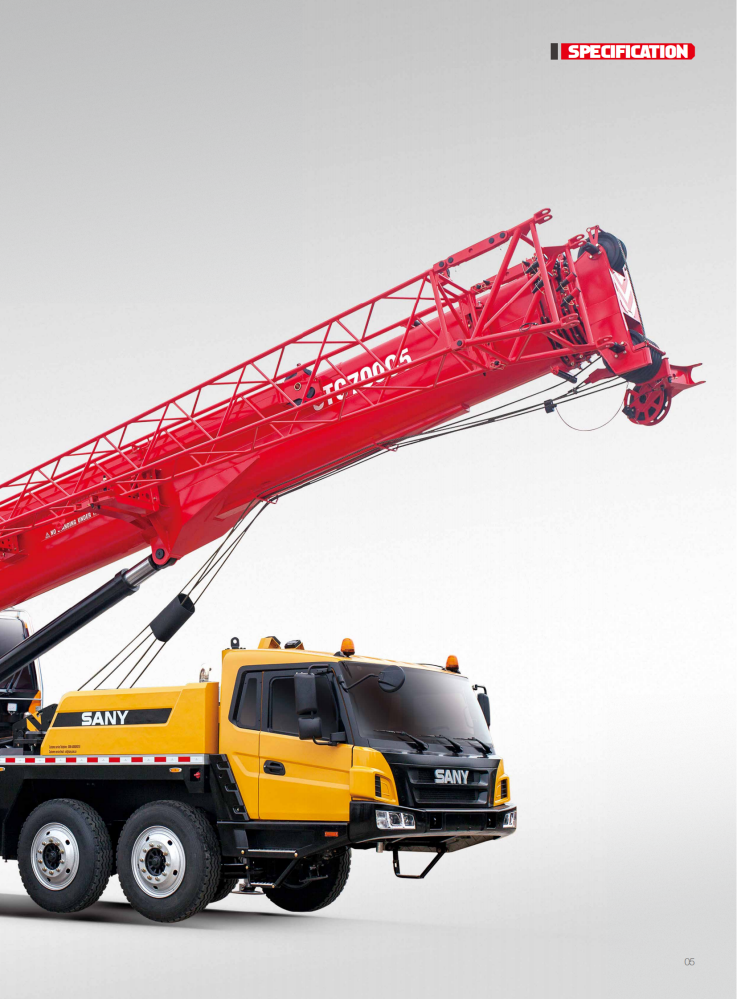

STC700C5

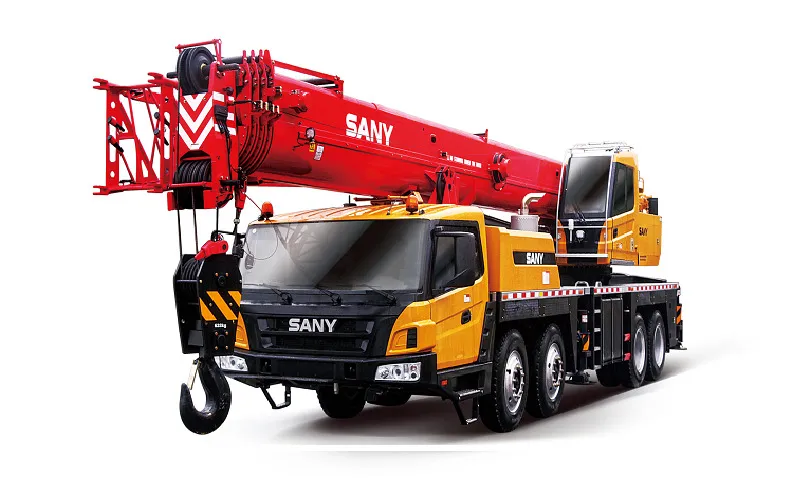

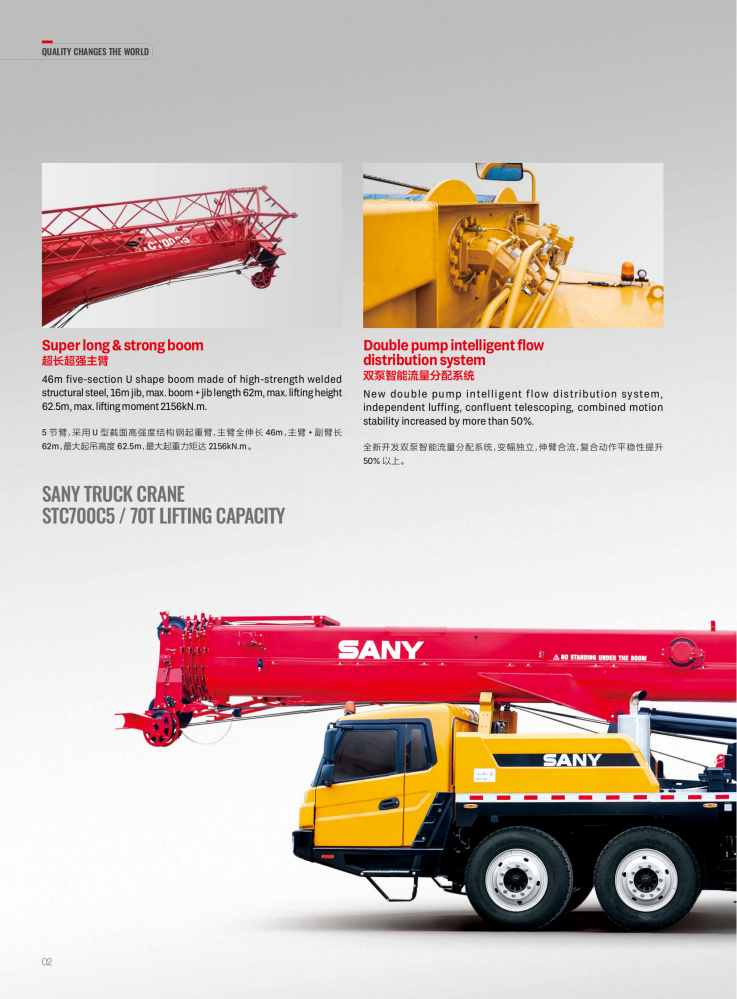

The STC700C5 is a 70-ton truck crane with exceptional lifting performance. It has a maximum lift capacity of 70 tons and a lifting torque of 2,156 kN·m. Its five-section, large-section U-shaped main boom reaches 46 meters at full extension, and is equipped with a 16-meter jib, expanding its reach for high-altitude and long-distance operations.
70 T
46 m
62.5 m

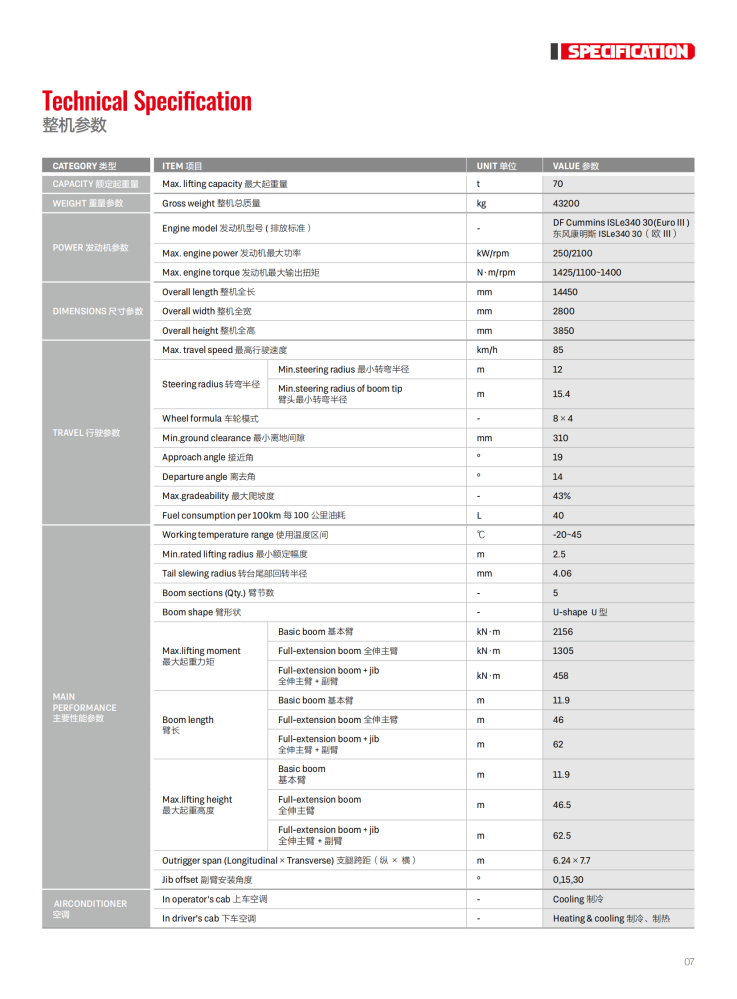

| Counterweight | 10.5 T |
| Max. Lifting Capacity | 70 T |
| Max. Boom Length | 46 m |
| Max. jib Length | 16 m |

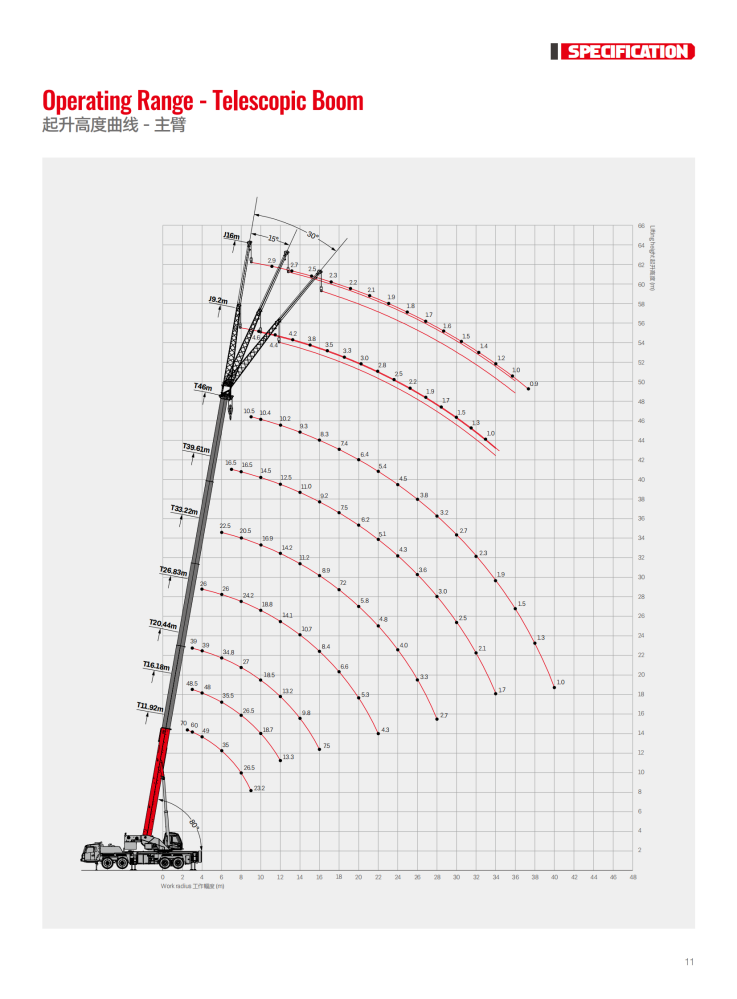

| Max. Lifting Height | 62.5 m |
| Max. Lifting Moment | 2156 kN·m |
| Available Districts | Middle East countries |
| Engine Model (Emission Standard) | DF Cummins iSLe340 30 (Euro lll) |
| Max. Gradeability | 43% |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 8×4 |
