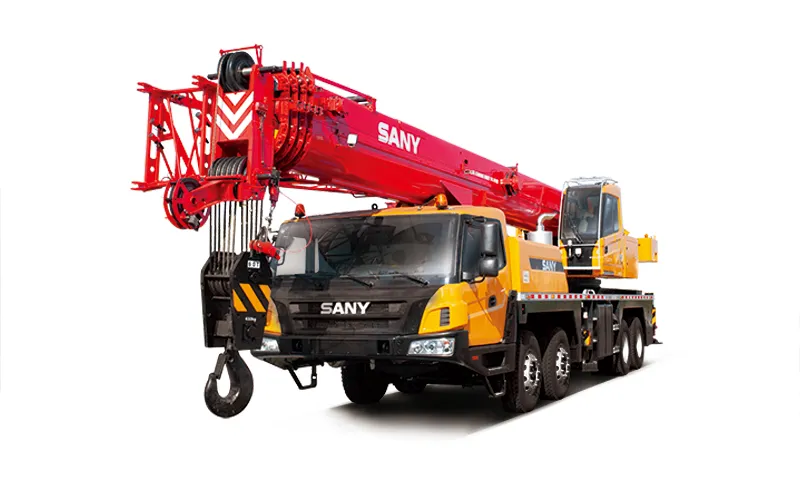

STC600T5
The STC600T5 is a 60-ton truck crane with outstanding lifting capabilities. It has a maximum lifting capacity of 60 tons and a lifting torque of 2,303 kN·m. Its five-section, large-section U-shaped main boom reaches 47.5 meters when fully extended, and is equipped with a 16-meter, two-stage jib, expanding its reach. It is equipped with a Weichai WP9H350E50 (China V) engine with a rated power of 257 kW, providing powerful performance.
60 T
45.5 m
62 m

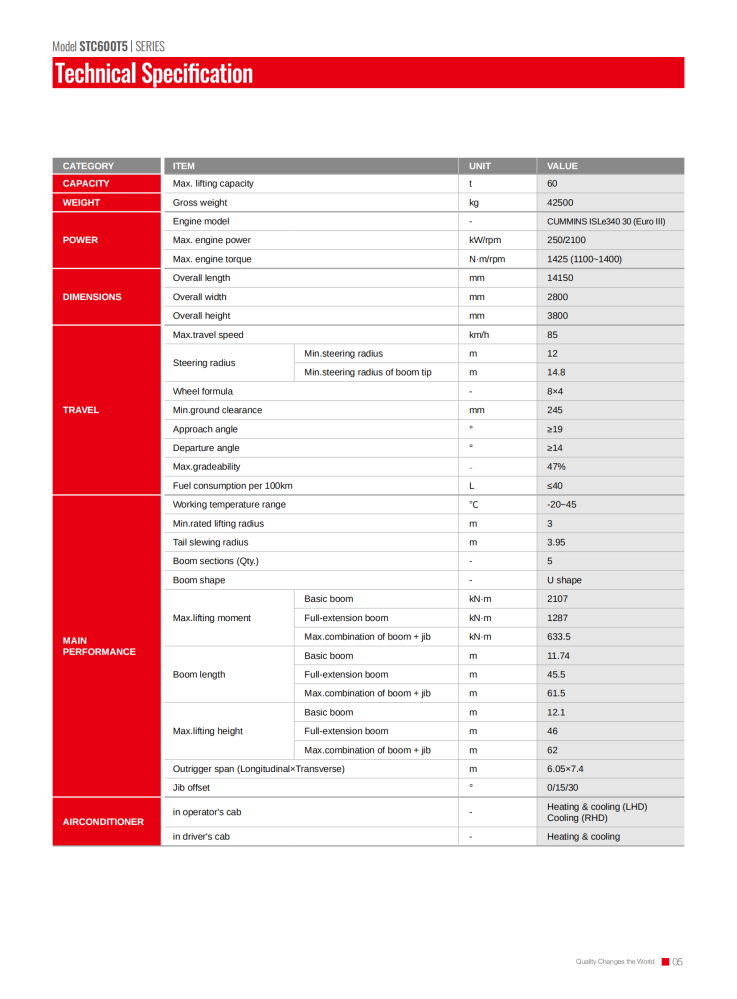

| Max. Lifting Capacity | 60T |
| Max. Lifting Height | 62m |
| Max. Lifting Moment | 2107kN.m |
| Max. Boom Length | 45.5m |
| Max. Jib Length | 16m |
| Counter weight | 8 T |
| Engine Model (Emission Standard) | DF Cummins ISLe34030 (Euro Ⅲ) |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 8×4×4 |
| Max. Gradeability | 47% |
| Available Districts | LHD area |
