STC550C5

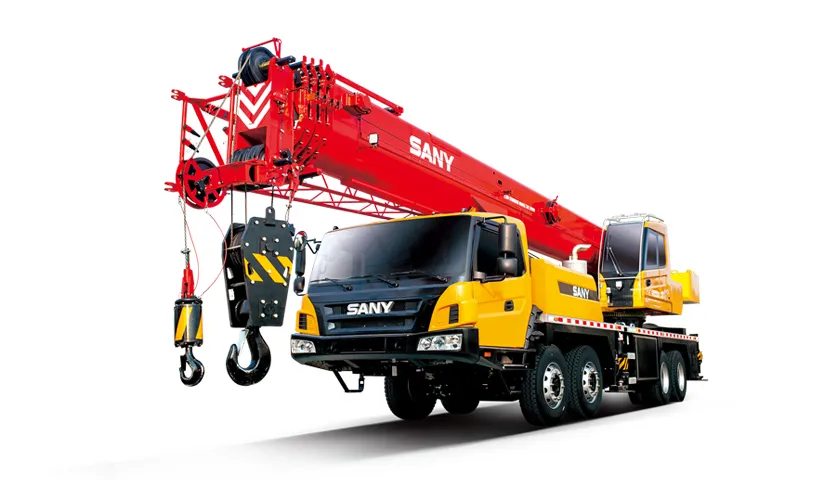

The STC550C5 is a high-efficiency 55-ton truck crane. It offers excellent lifting performance, with a maximum lift capacity of 55 tons and a lifting torque of 2,156 kN·m. Its main boom is 32.1 meters long, reaching a maximum reach of 47.5 meters, and its maximum lifting height is 64 meters. Powered by a powerful Yuchai 360-horsepower engine and a Fast Gear twin-intermediate shaft, the crane boasts a maximum speed of 85 km/h and a maximum gradeability of 47%. Equipped with 325/95R24 and 315/80R22.5 tires, it boasts an outrigger span of 7.7 meters horizontally and 6.24 meters vertically, providing excellent stability.
55 T
45 m
61.5 m

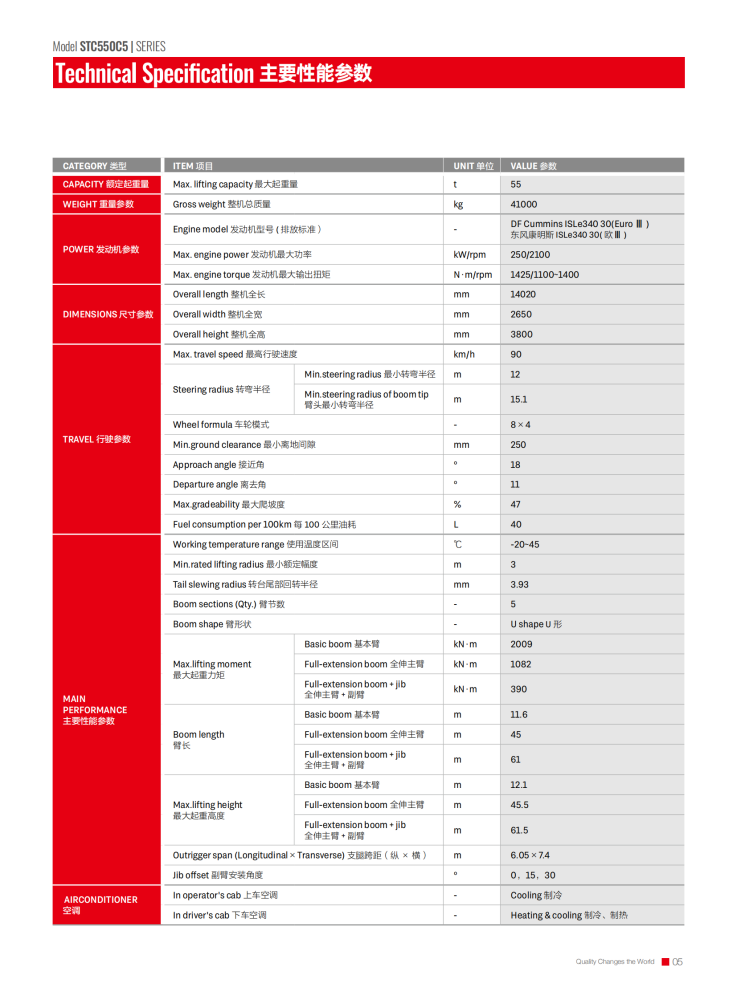

| Counterweight | 7.5 T |
| Max. Lifting Capacity | 55 T |
| Max. Boom Length | 45 m |
| Max. jib Length | 16 m |
| Max. Lifting Height | 61.5 m |
| Max. Lifting Moment | 2009 kN·m |
| Available Districts | LHD area |
| Engine Model (Emission Standard) | DF Cummins iSLe340 30 (Euro lll) |
| Max. Gradeability | 47% |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 8×4 |
