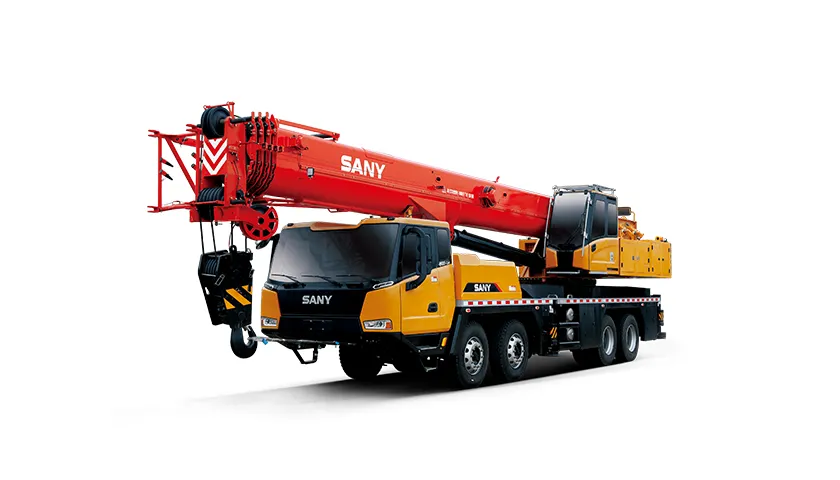

STC500BEV

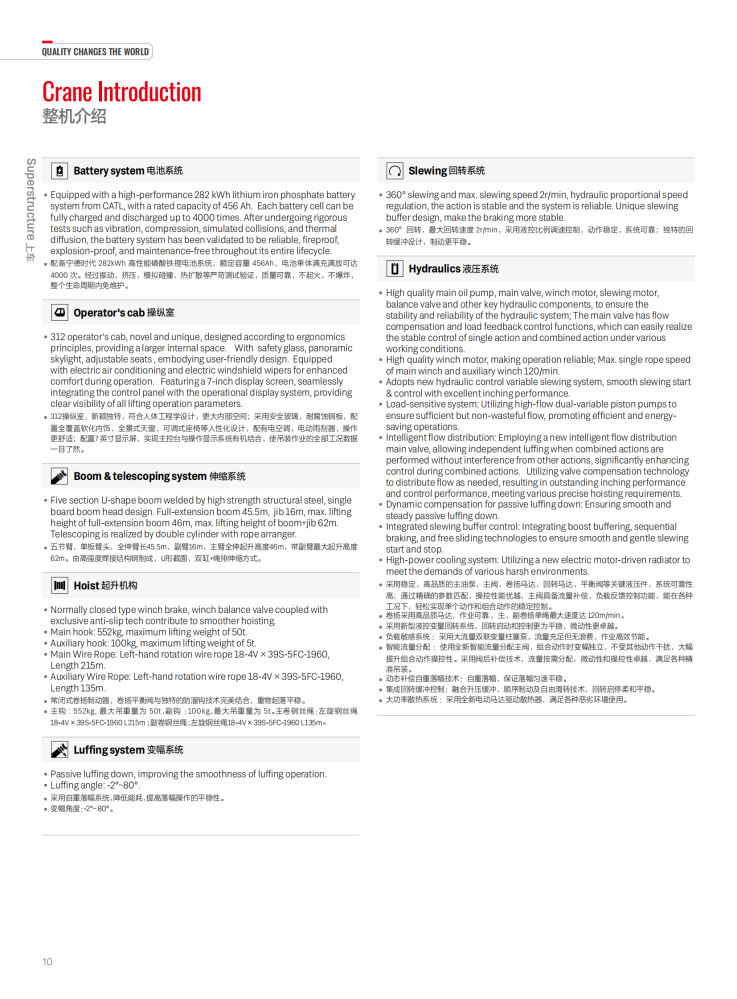

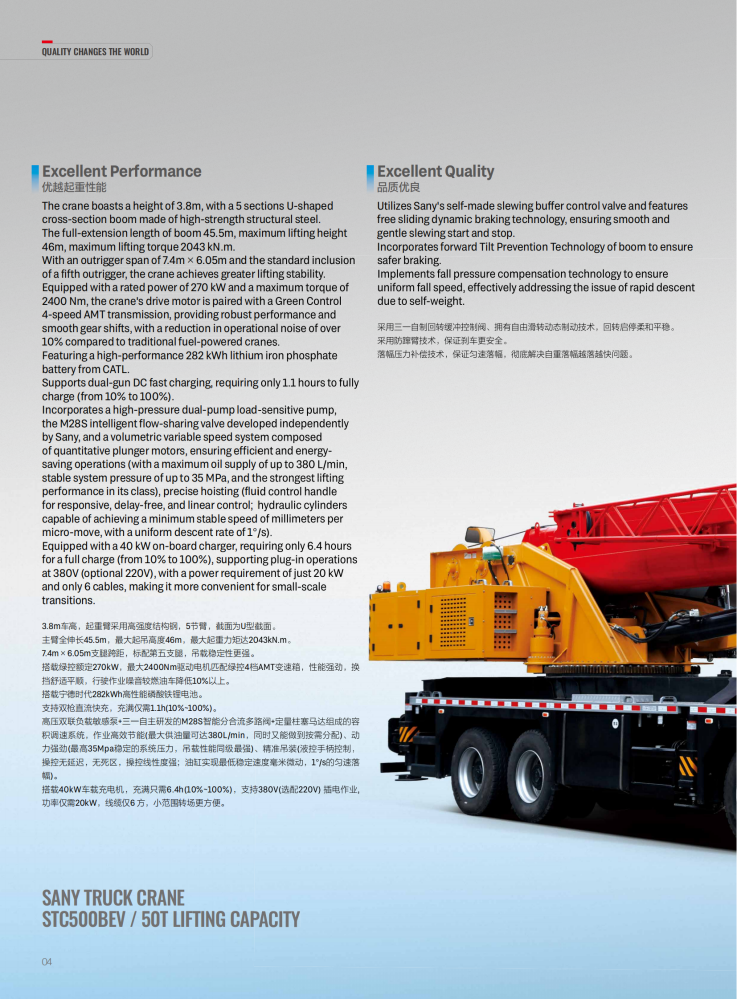

The STC500BEV is a 50-ton, all-electric truck crane. It boasts excellent lifting performance, with a maximum lifting capacity of 50 tons and a maximum lifting torque of 2,043 kN·m. Its main boom utilizes a five-section, U-shaped, high-strength structure, with a full extension of 45.5 meters and a maximum lifting height of 46 meters. It is powered by a CATL 282kWh high-performance lithium iron phosphate battery, a Green Control motor rated at 270kW and with a maximum torque of 2,400Nm, and a four-speed automatic manual transmission. It boasts a top speed of 95 km/h and a maximum gradeability of 51%.
50 T
45.5 m
62 m

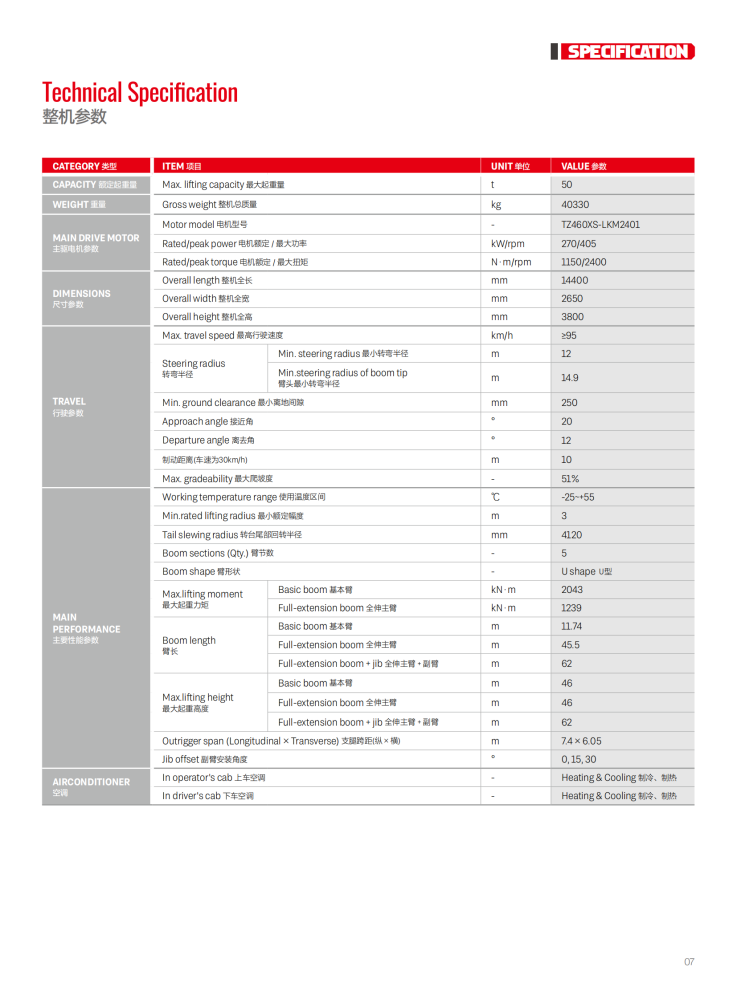

| Max. Lifting Capacity | 50T |
| Max. Lifting Height | 62m |
| Max. Lifting Moment | 2043kN.m |
| Max. Boom Length | 45.5m |
| Max. Jib Length | 16m |
| Counter weight | 10.5 T |
| Engine Model (Emission Standard) | TZ460XS-LKM2401 |
| Max. Traveling Speed | ≥95 km/h |
| Wheel Formula | 8×4 |
| Max. Gradeability | 51% |
| Available Districts | LHD |
