STC500T5

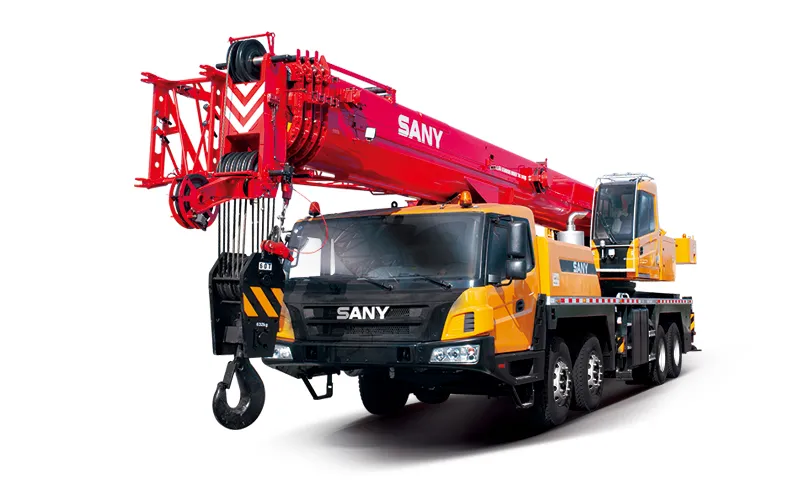

The STC500T5, a 50-ton high-performance truck crane, boasts powerful lifting capabilities. It has a maximum rated gross lift capacity of 50 tons, a lifting height of 61.5 meters, and a lifting torque of 2058 kN·m. Its five-section, large-section U-shaped boom reaches 44.5 meters at full extension, coupled with a 16-meter jib, enabling a wide operating range. Powered by a DF Cummins ISLe340 30 engine and an advanced transmission, it achieves a top speed of 85 km/h. Its G-type chassis offers excellent maneuverability, with a maximum gradeability of 47%, and its frame has undergone 200,000 fatigue tests.
50 T
44.5 m
61 m

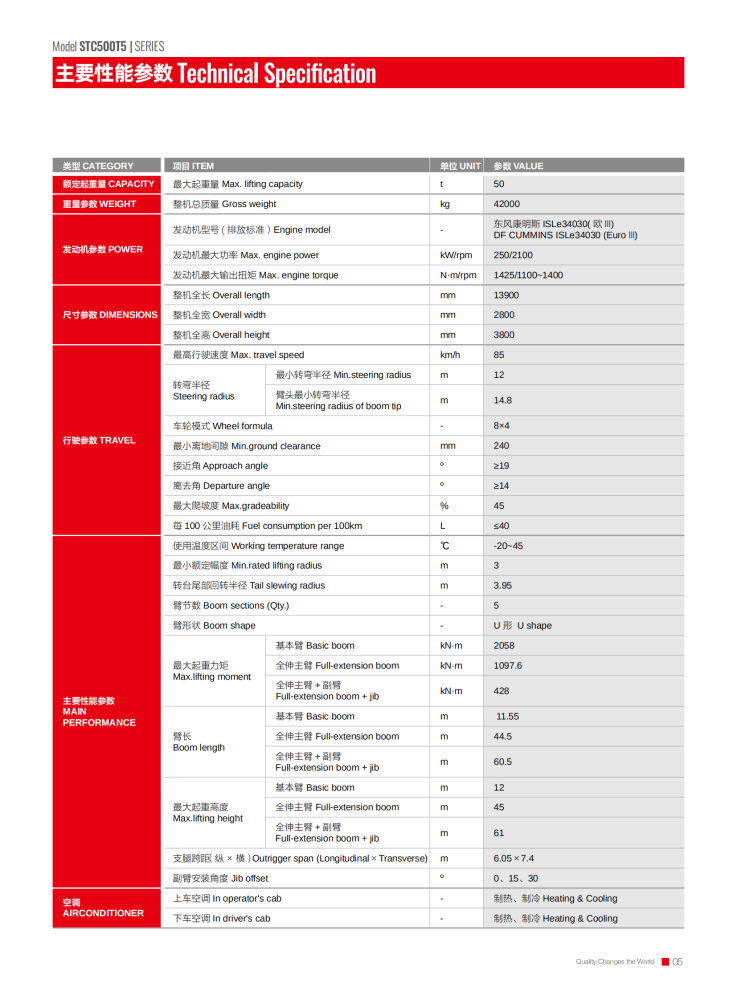

| Max. Lifting Capacity | 50T |
| Max. Lifting Height | 61m |
| Max. Lifting Moment | 2058kN.m |
| Max. Boom Length | 44.5m |
| Max. Jib Length | 16m |
| Counter weight | 4.8 T |
| Engine Model (Emission Standard) | DF Cummins ISLe34030 (Euro Ⅲ) |
| Max. Traveling Speed | 85 km/h |
| Wheel Formula | 8×4×4 |
| Max. Gradeability | 45% |
| Available Districts | LHD area |
