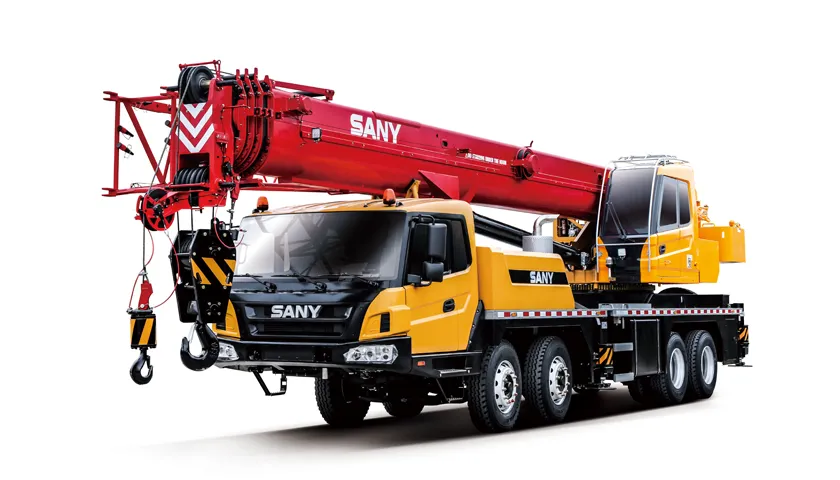

STC500C5

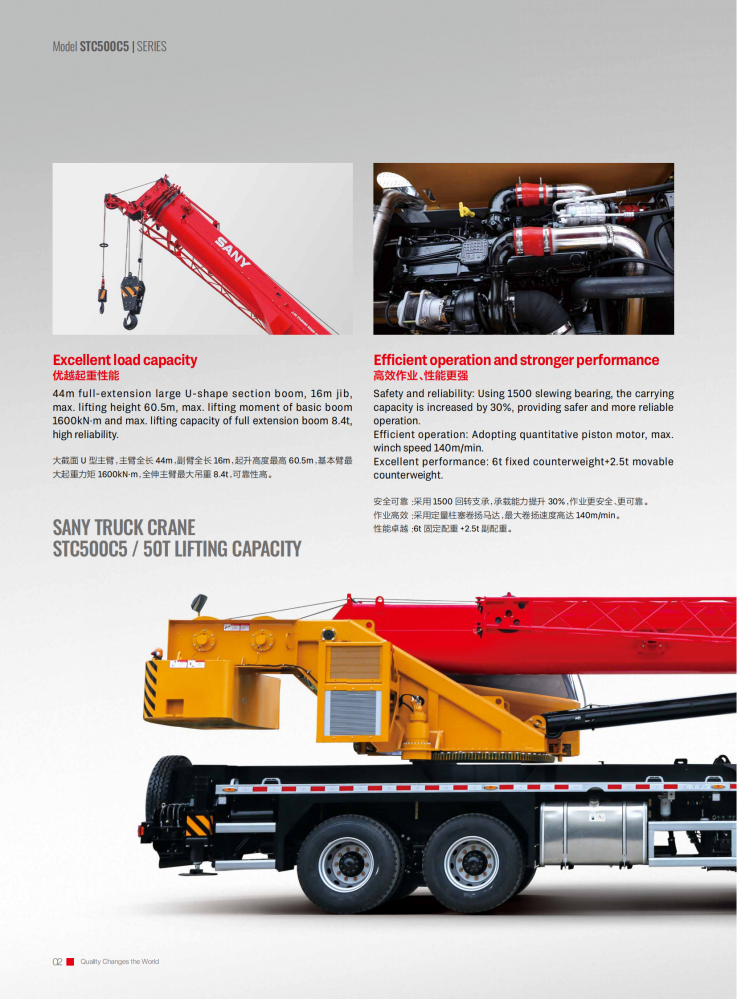

The STC500C5 truck crane is an outstanding piece of equipment for the construction industry, boasting a maximum rated gross lifting capacity of 50 tons, a maximum lifting height of 62.5 meters, and a maximum lifting torque of 2009 kN·m. Its large-section U-shaped main boom, combined with a jib, expands its operating range and adapts to diverse scenarios. Equipped with a Yuchai YCK08330-66 engine, it delivers a maximum power of 243/2200 kW/rpm and a top speed of 90 km/h. Its excellent maneuverability allows for rapid transitions and adaptability to complex terrain.
50 T
44 m
60.5 m

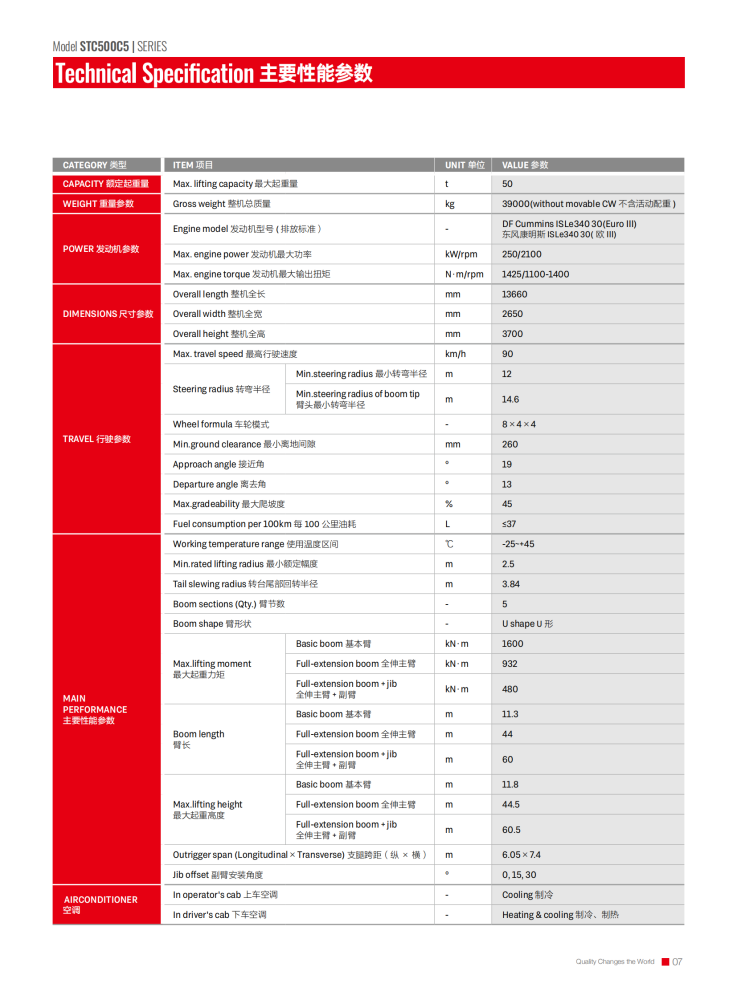

| Counterweight | 8.5T |
| Max. Lifting Capacity | 50T |
| Max. Boom Length | 44m |
| Max. jib Length | 16m |
| Max. Lifting Height | 60.5m |
| Max. Lifting Moment | 1600kN·m |
| Available Districts | LHD countries |

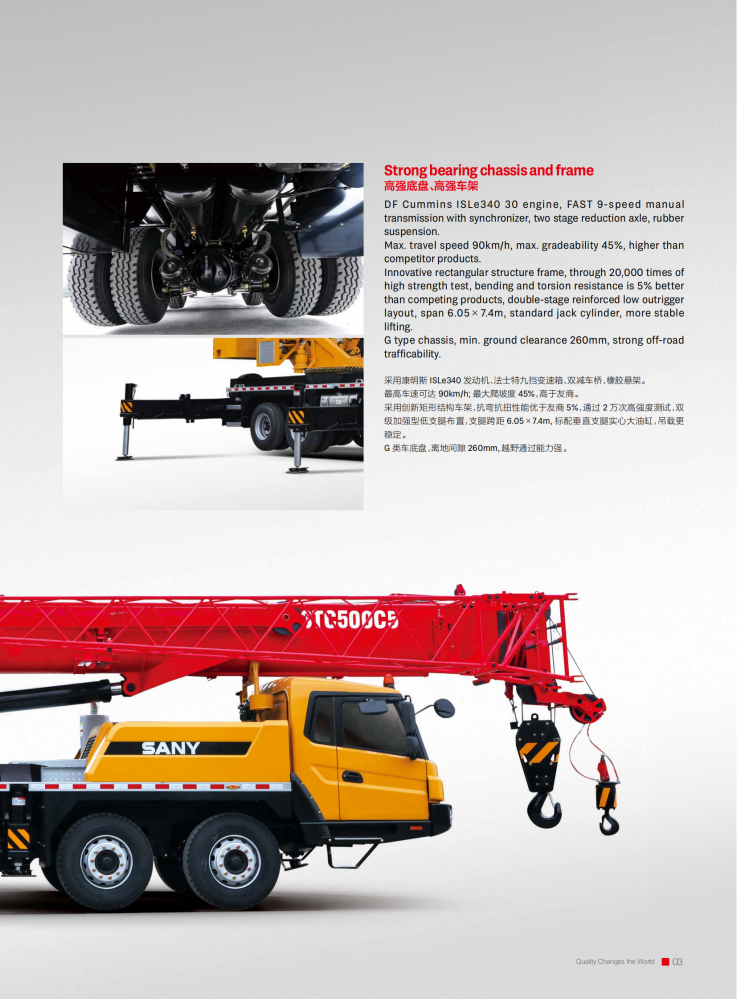

| Engine Model (Emission Standard) | DF Cummins lSLe340 40 (Euro lll) |
| Max. Gradeability | 45% |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 8×4×4 |
