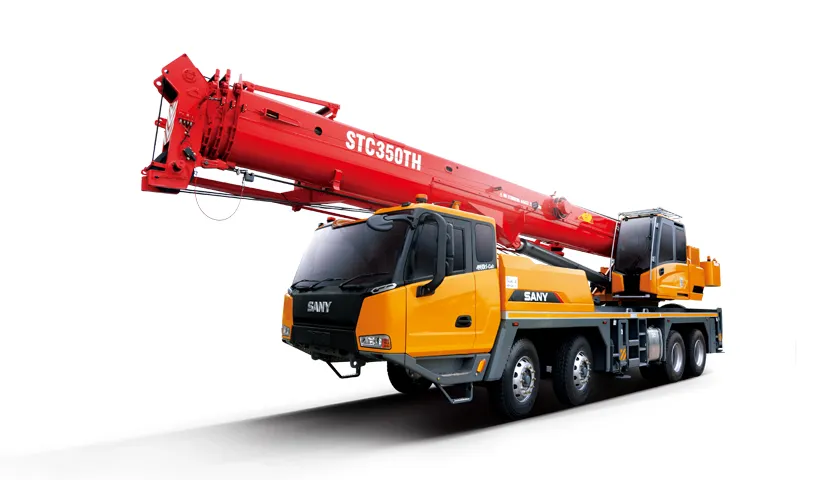

STC350TH
The STC350TH truck crane, with its superior lifting performance, flexible travel capabilities, intelligent and precise control system, and reliable safety features, has become a powerful aid in various engineering operations, including construction, equipment installation, and municipal engineering. It is a reliable, high-quality lifting equipment that provides strong support for the smooth progress of engineering projects.
35T
35m
43.5m

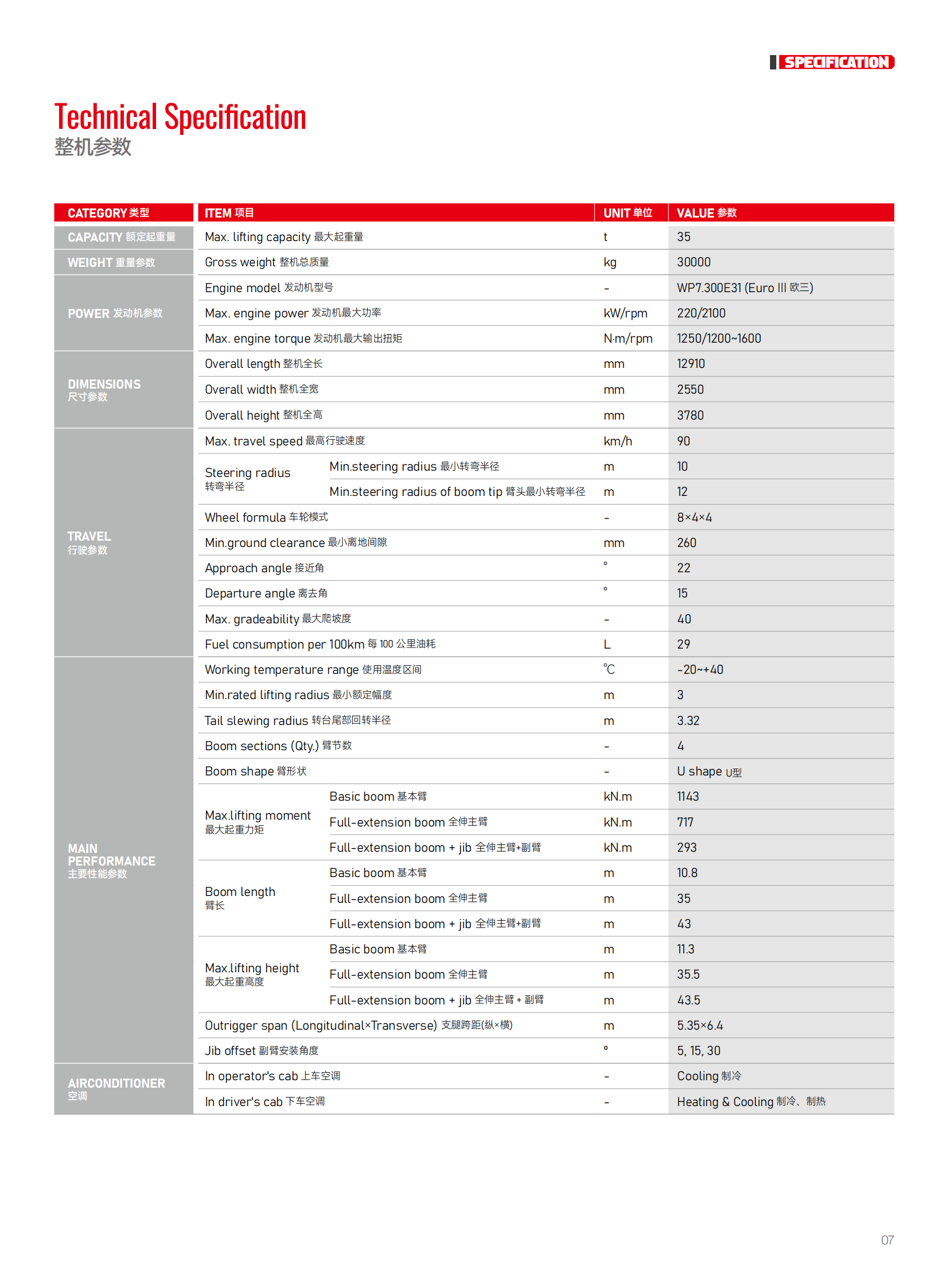

| Counterweight | 4T |

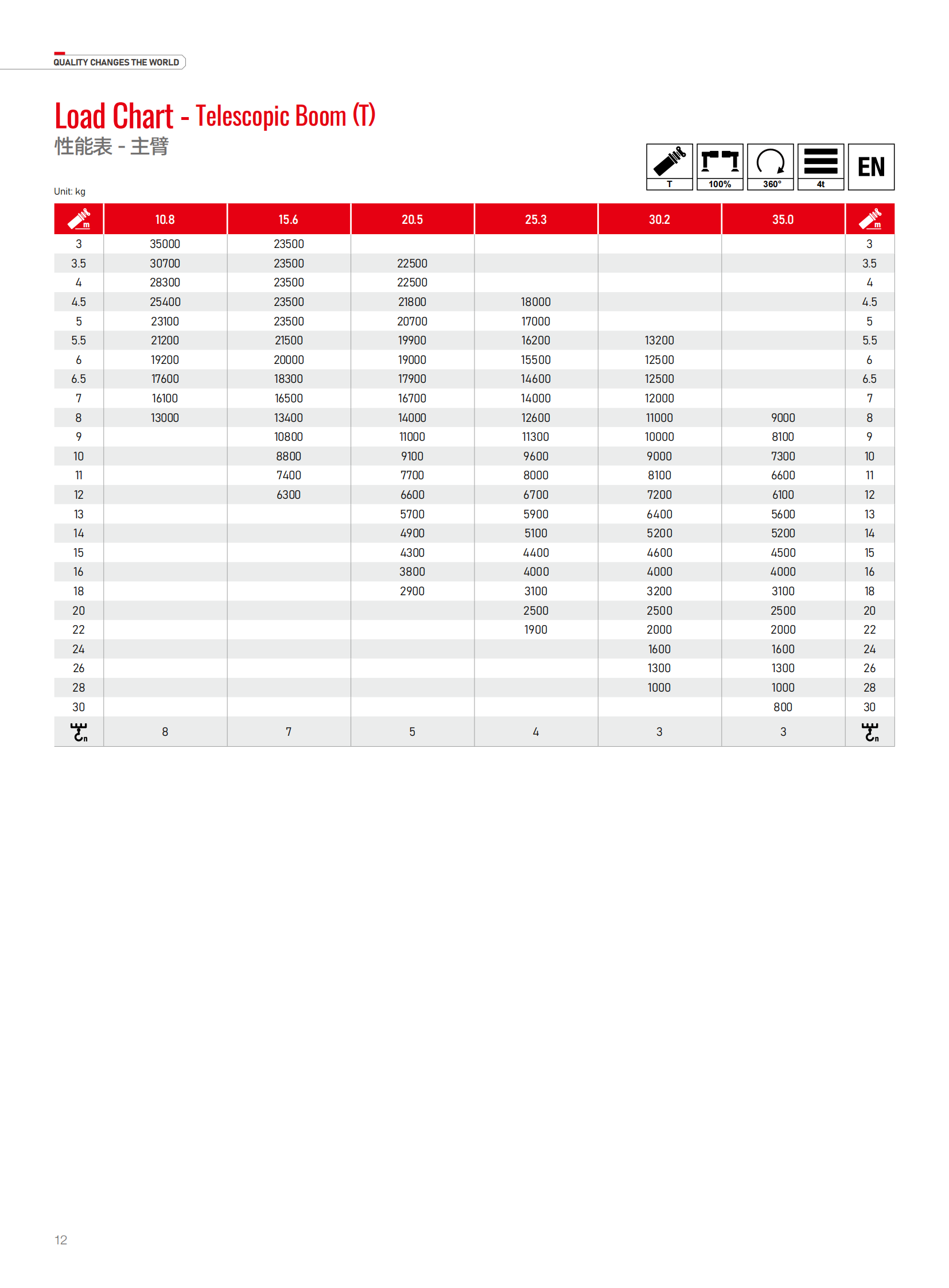

| Max. Lifting Capacity | 35T |
| Max. Boom Length | 35m |

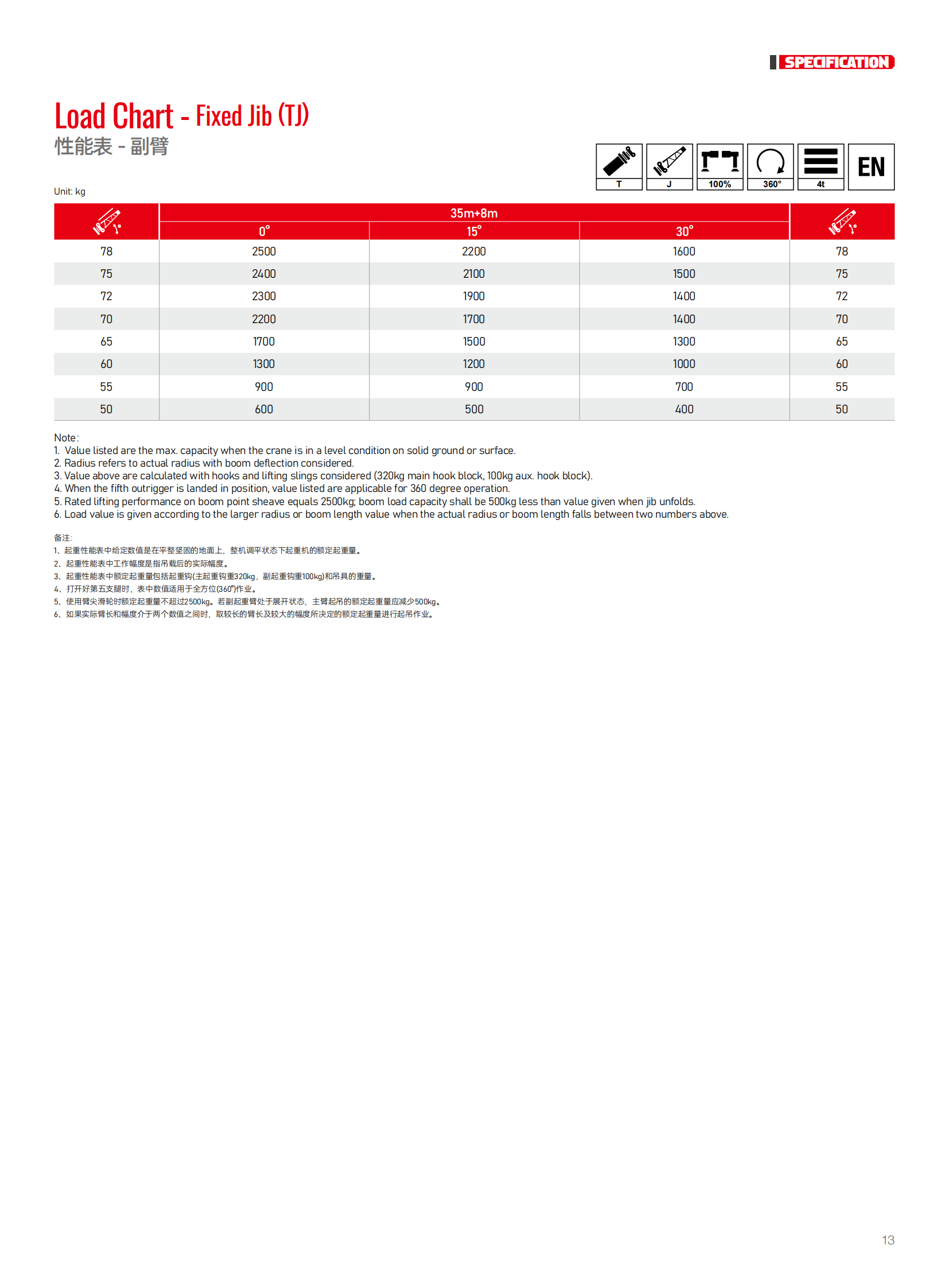

| Max. jib Length | 8m |

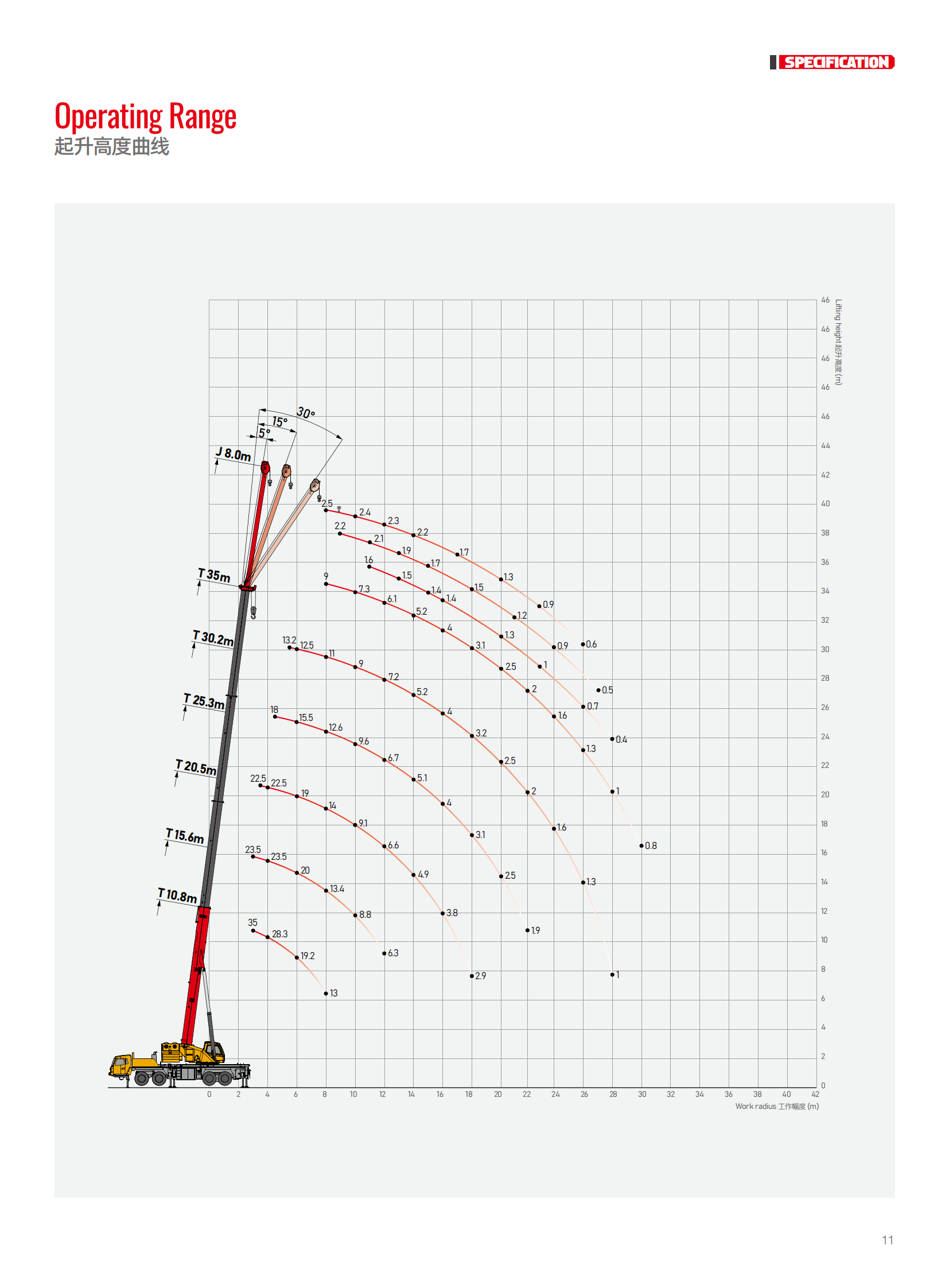

| Max. Lifting Height | 43.5m |
| Max. Lifting Moment | 1143kN·m |
| Available Districts | RHD |
| Engine Model (Emission Standard) | Weichai WP7.300E31 (Euro lll) |
| Max. Gradeability | 40% |
| Max. Traveling Speed | 90 km/h |
| Wheel Formula | 8×4×4 |
